Instrument Panel Dimmer Switch: Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

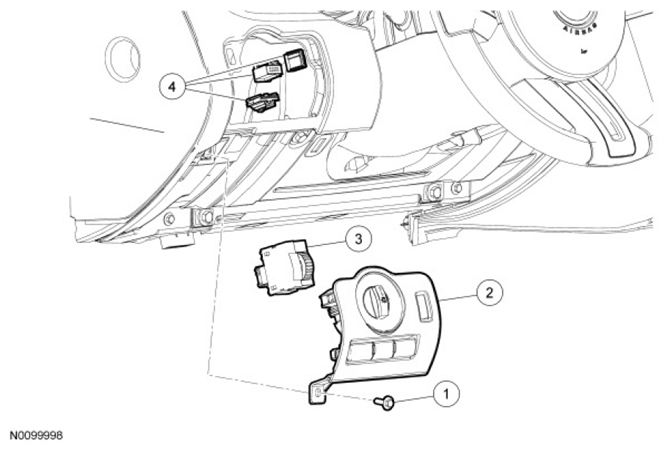

Fig 1: Identifying Instrument Panel Dimmer Switch With Related Components
G07489202Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W705314 Switch bezel screw
2 7804338 Switch bezel
3 11691 Instrument panel dimmer switch
4 - Electrical connectors (part of 14401)
