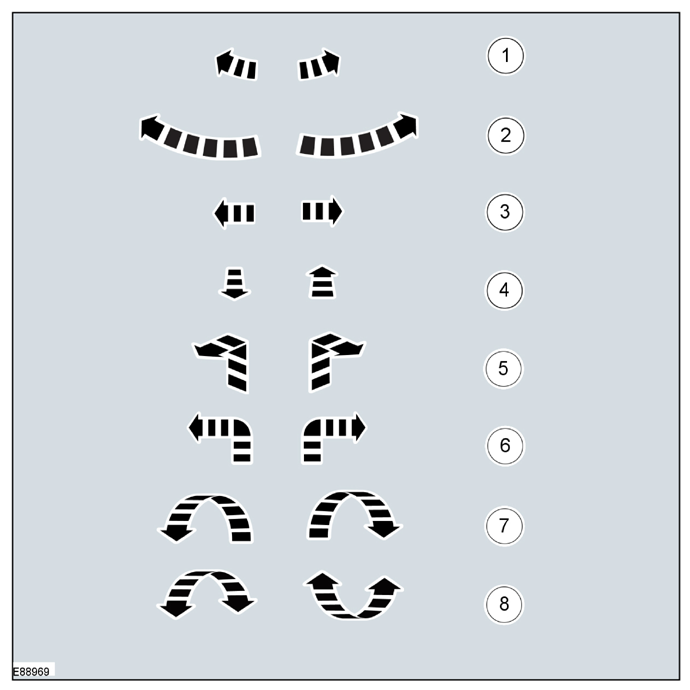

Movement symbols provide detailed information to a required component movement. These component movements can be rotational or 1-3 dimensional movements.
| Item | Description |
|---|---|
| 1 | Minor component movement clockwise/counterclockwise |
| 2 | Major component movement clockwise/counterclockwise |
| 3 | Component movement to the left/right/up/down |
| 4 | Component movement towards/away |
| 5 | 3 dimensional component movement |
| 6 | 2 dimensional component movement |
| 7 | 3 dimensional component rotation |
| 8 | 3 dimensional component cycling |
