Measurement Symbols
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

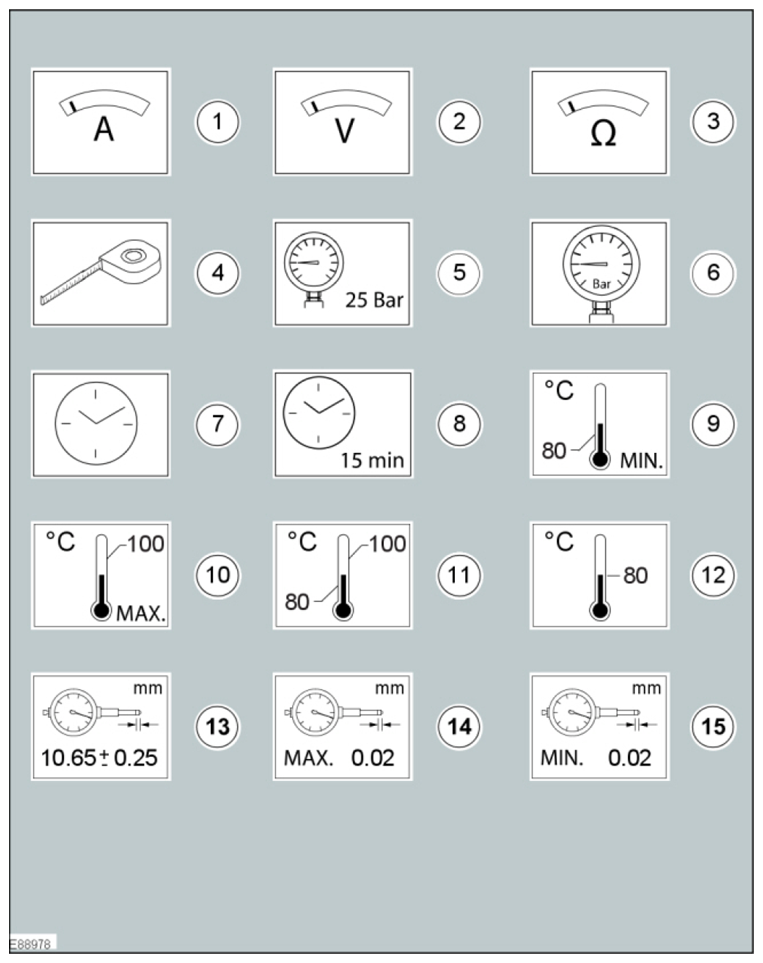

The measurement symbols are used to show where to measure which type of measurement to carry out a procedure step.
| Item | Description |
|---|---|
| 1 | Measure the current using a digital multimeter |
| 2 | Measure the voltage using a digital multimeter |
| 3 | Measure the resistance using a digital multimeter |
| 4 | Measure the length/distance |
| 5 | Check that the specified pressure is available using a suitable pressure gauge |
| 6 | Measure the pressure at the specified port using a suitable pressure gauge |
| 7 | Measure the time using a suitable stopwatch |
| 8 | Wait for the specified period of time |
| 9 | The specified task requires the specified minimum temperature |
| 10 | The specified task requires the specified maximum temperature not to be exceeded |
| 11 | The specified task requires the specified temperature range |
| 12 | The specified task requires the specified temperature |
| 13 | Measure and check for the specified value using a dial indicator gauge |
| 14 | Measure and check for the specified MAX value using a dial indicator gauge |
| 15 | Measure and check for the specified MIN value using a dial indicator gauge |
