Brake Pedal and Bracket: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

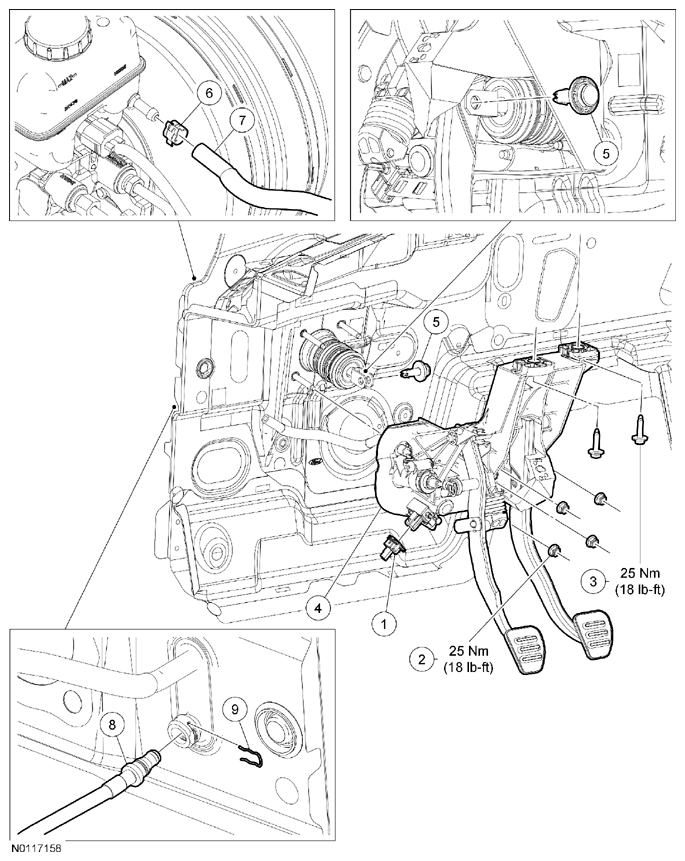

Manual transmission pedal assembly shown in illustration, automatic transmission pedal assembly similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Clutch Pedal Position (CPP) switch connector (part of 12638) |
| 2 | W520112 | Brake booster nut (4 required) |
| 3 | W707108 | Brake pedal bracket bolt (2 required) |
| 4 | 2455 | Brake pedal and bracket |
| 5 | 2L523 | Brake booster push rod clevis locking pin |
| 6 | - | Spring clamp (part of 7A543) |
| 7 | - | Clutch low-pressure hydraulic hose (part of 7A543) |
| 8 | - | Clutch pedal high-pressure hydraulic hose (part of 7A512) |
| 9 | - | Hairpin clip (part of 7A512) |
