Bumper Cover - Rear: Removal
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
- Remove the luggage compartment rear trim panel.
- On each side.
- On each side.
- Feed the wiring harness through the rear of the vehicle.
-
NOTE: If required.

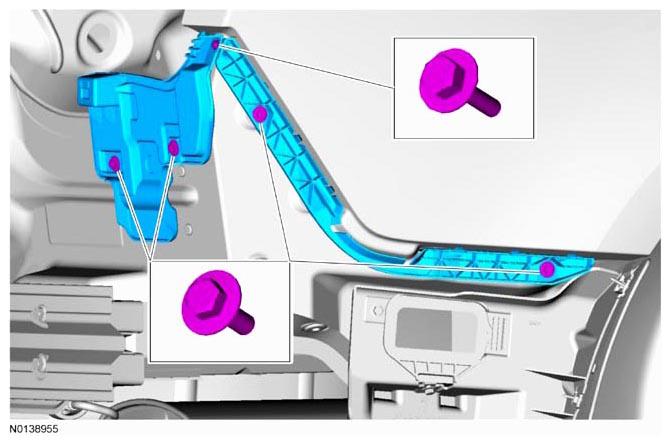

To install, tighten the rear bumper cover reinforcement-to-body bolts to 25 Nm (18 lb-ft).
