Bumper Cover - Front, GT500: Removal

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
To install, tighten to 5.4 Nm (44 lb-in).
On each side.

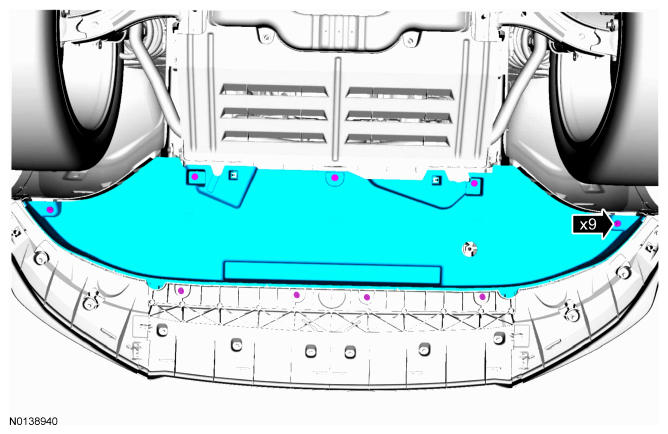

- To install, tighten front bumper cover-to-air splitter screws to 1.7 Nm (15 lb-in).

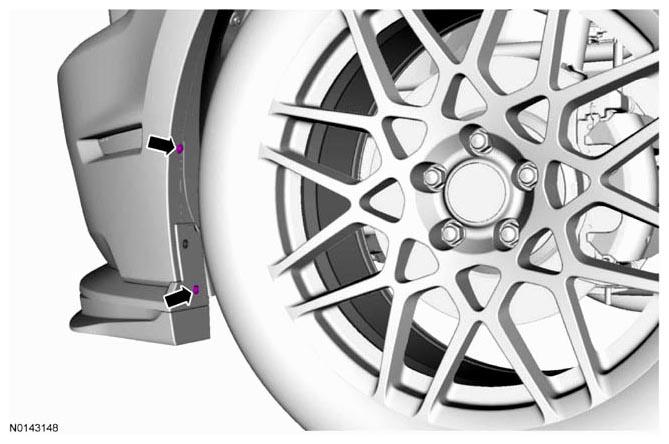

- To install, tighten front bumper cover-to-Inner fender screws to 1.7 Nm (15 lb-in).
To install, tighten to 1.3 Nm (12 lb-in).
On each side.
On each side.
NOTE: Inspect reinforcement for correct alignment and damage.
If required.
- To install, tighten to 2.2 Nm (19 lb-in).
