Differential Ring And Pinion: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Jaw Puller 205-D072 (D79L-4221-A1) or equivalent |
|
| Adapter for 205-S127 205-105 (T76P-4020-A3) |
|
| Adapter for 205-S127 205-109 (T76P-4020-A9) |
|
| Adapter for 205-S127 205-110 (T76P-4020-A10) |
|
| Adapter for 205-S127 205-111 (T76P-4020-A11) |
|
| Adapter for 205-S127 205-129 (T79P-4020-A18) |
|
| Adapter for 205-S127 205-130 (T79P-4020-A19) |
|
| Installer, Differential Side Bearing 205-010 (T57L-4221-A2) |
|
| Installer, Drive Pinion Bearing Cup 205-024 (T67P-4616-A) |
|
| Installer, Shaft Bearing Cone 308-169 (T88T-7025-B) |
|
| Plate, Bearing Oil Seal 205090 (T75L-1165B) |
|
| Protector, Drive Pinion Thread 205-460 or equivalent |
|
| Step Plate 205-D016 (D80L-630-5) or equivalent |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Maximum Strength Retaining Compound Loctite® 638™ |
- |

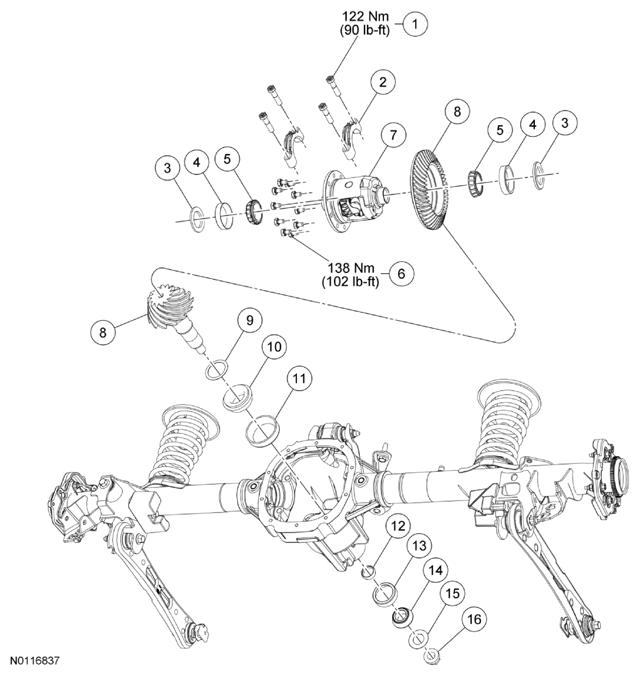

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Differential bearing cap bolt (part of 4010) |
| 2 | - | Differential bearing cap (part of 4010) |
| 3 | 4067 | Differential bearing shims (2 required) |
| 4 | 4221 | Differential bearing cups (2 required) |
| 5 | 4222 | Differential bearing cones (2 required) |
| 6 | 4216 | Differential ring gear bolt (10 required) |
| 7 | - | Differential carrier assembly |
| 8 | 4209 | Ring gear (set with drive pinion) |
| 9 | 4663 | Pinion bearing adjustment shim |
| 10 | 4630 | Inner pinion bearing |
| 11 | 4628 | Inner pinion bearing cup |
| 12 | 4662 | Collapsible spacer |
| 13 | 4616 | Outer pinion bearing cup |
| 14 | 4621 | Outer pinion bearing |
| 15 | 4670 | Pinion oil slinger |
| 16 | 4320 | Pinion nut |
