Differential Cooler Lines - Front: Removal

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the RH front wheel and tire. Refer to WHEELS AND TIRES .

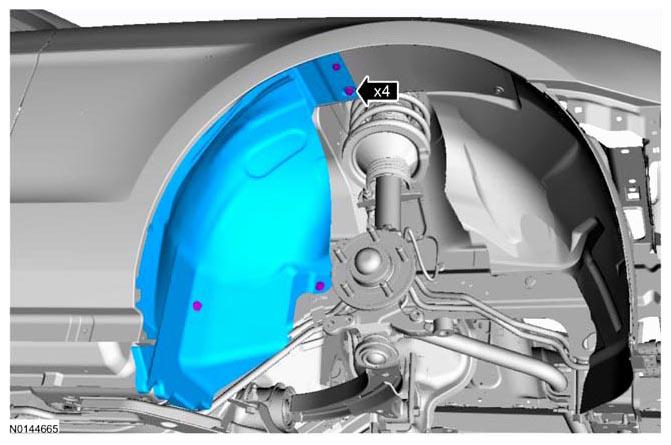

  2. G08642491

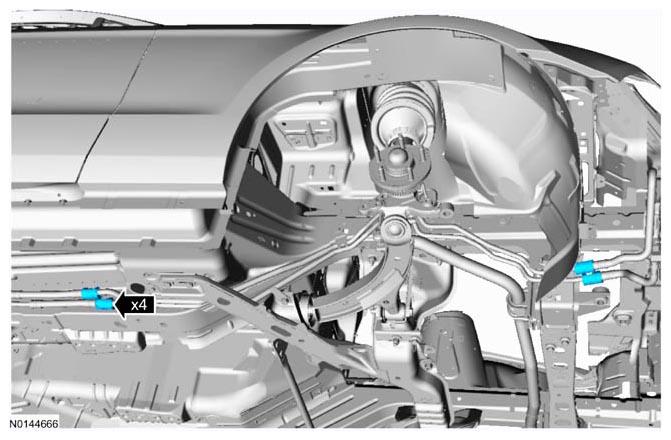

  3. G08642492

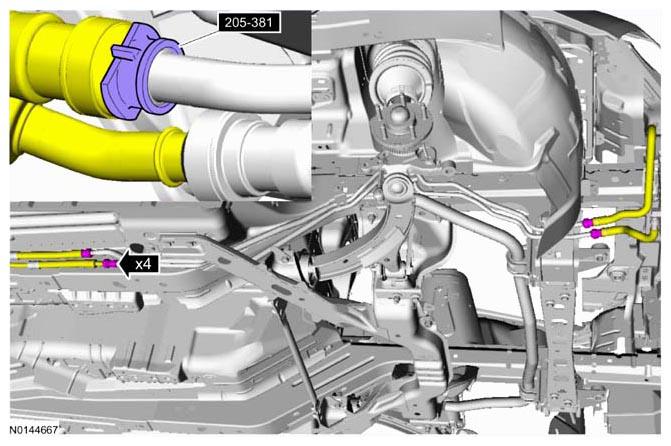

  4. Special Tool: Transmission Cooler Line Disconnect Tool 307-569.
    G08642493
    • To install, tighten the bolts to 11 Nm (97 lb-in).

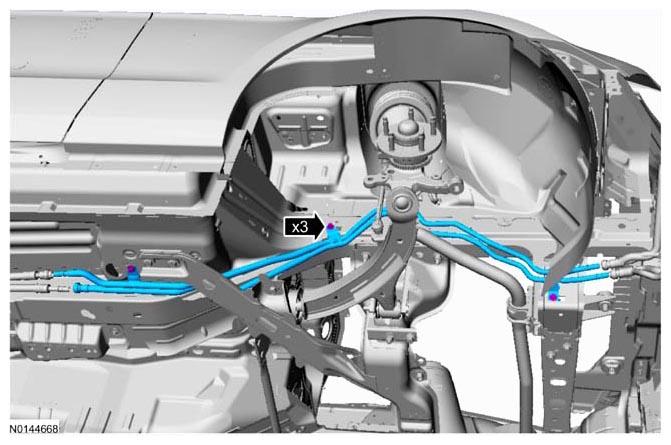

      G08642494
