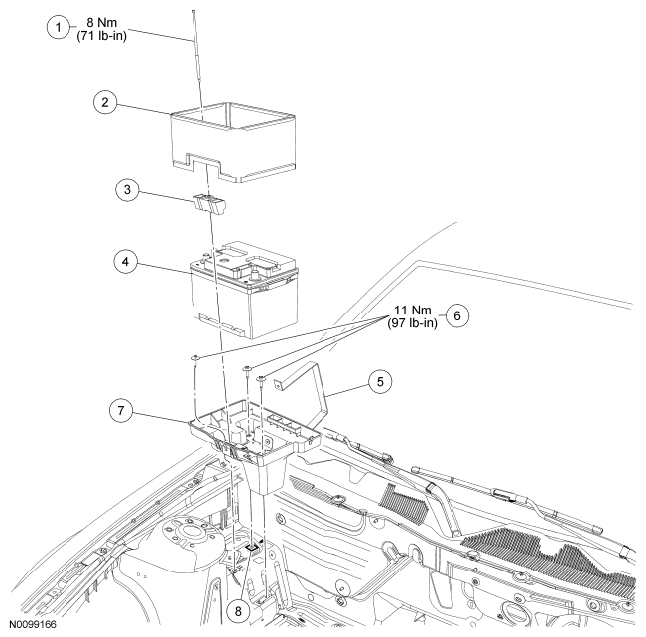

Battery and Battery Tray - Exploded View
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Battery hold-down clamp bolt (part of 10718) |
| 2 | 10A687 | Battery heat shield (if equipped) |
| 3 | 10718 | Battery hold-down clamp |
| 4 | 10655 | Battery |
| 5 | - | Battery hold-down strap (part of 10732) |
| 6 | W503923 | Battery tray bolts (3 required) |
| 7 | 10732 | Battery tray |
| 8 | 16774 | J-clip nut |
NOTE:
Disconnect the battery. For additional information, refer to BATTERY DISCONNECT .
NOTE:
For GT500 models, apply threadlock and sealer to the battery tray bolt threads during assembly.
- Refer to the procedures and/or exploded views in this service information for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
