Battery Cables - 5.8L (4V): Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

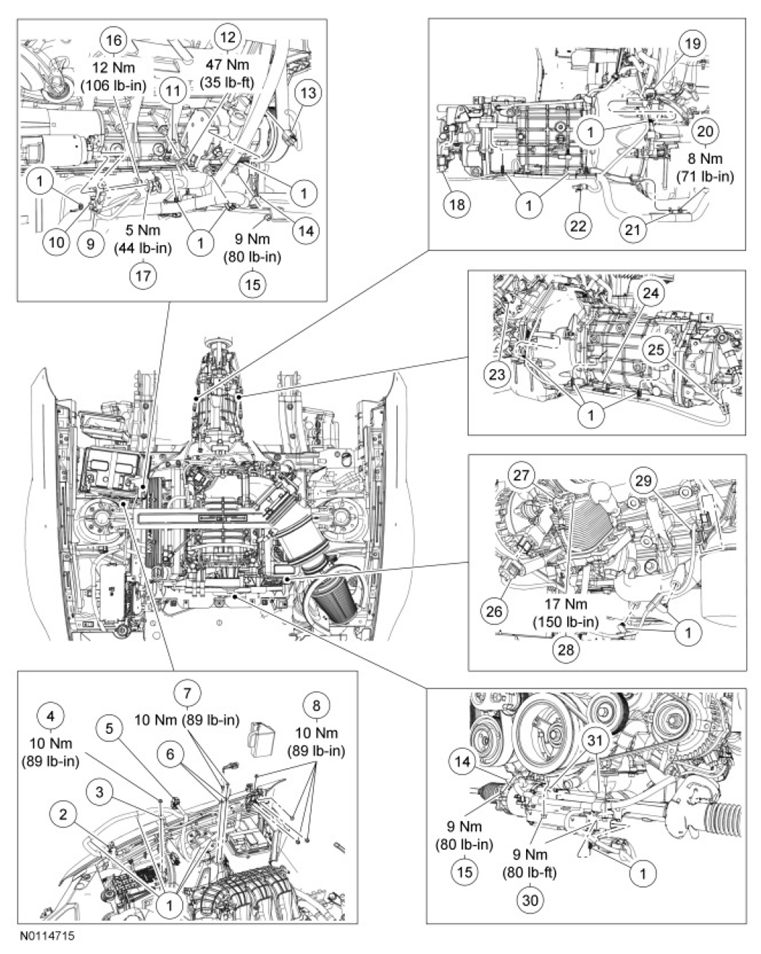

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Battery cable harness locator (part of 14B060) |
| 2 | - | PCM harness connector (part of 14B060) |
| 3 | - | Battery Junction Box (BJB) terminal (part of 14B060) |
| 4 | W705764 | BJB terminal nut |
| 5 | - | Engine control harness connector (part of 14B060) |
| 6 | - | Battery ground cable body terminal (part of 14B060) |
| 7 | W712583 | Battery ground cable body terminal bolt (2 required) |
| 8 | W705764 | Battery cable terminal nut (4 required) |
| 9 | - | Starter solenoid positive cable terminal (part of 14B060) |
| 10 | - | Starter solenoid wire terminal (part of 14B060) |
| 11 | - | Battery ground cable-to-engine terminal (part of 14B060) |
| 12 | W520103 | Battery ground cable-to-engine terminal nut |
| 13 | - | A/C compressor connector (part of 14B060) |
| 14 | - | Battery cable harness bracket (part of 14B060) |
| 15 | W705790 | Battery cable harness bracket nut |
| 16 | W706414 | Starter solenoid positive cable terminal nut |
| 17 | W705790 | Starter solenoid wire terminal nut |
| 18 | - | Output Shaft Speed (OSS) connector (part of 14B060) |
| 19 | - | Right upper Heated Oxygen Sensor (HO2S) connector (part of 14B060) |
| 20 | W701014 | Lower battery cable harness bracket nut |
| 21 | - | Lower battery cable harness bracket (part of 14B060) |
| 22 | - | Reverse switch connector (part of 14B060) |
| 23 | - | Left upper Heated Oxygen Sensor (HO2S) connector (part of 14B060) |
| 24 | - | Left lower Heated Oxygen Sensor (HO2S) connector (part of 14B060) |
| 25 | - | Reverse lockout solenoid connector (part of 14B060) |
| 26 | - | Generator connector (part of 14B060) |
| 27 | - | Generator B+ terminal (part of 14B060) |
| 28 | W711953 | Generator B+ terminal nut |
| 29 | - | Oil pressure switch connector (part of 14B060) |
| 30 | W705790 | Battery cable harness bracket nut |
| 31 | - | Battery cable harness bracket (part of 14B060) |
| 32 | - | Electronic Power Assist Steering (EPAS) connector (part of 14B060) |
