Vehicle Dynamics Module (VDM): Removal

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

NOTE: Removal steps in this procedure may contain installation details.

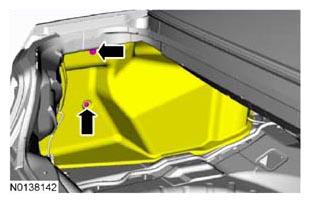

NOTE: The Vehicle Dynamics Module (VDM) is mounted to the LH side of the luggage compartment behind the luggage compartment side carpet panel.

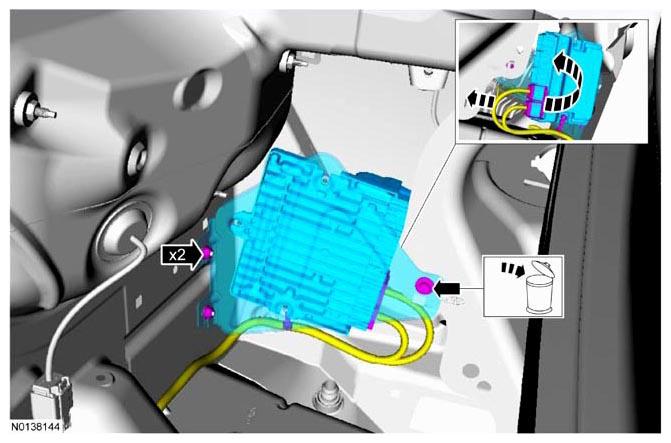

Discard the specified component. Follow local disposal regulations.
- To install, tighten new bolt to 9 Nm (80 lb-in).
- Tighten nuts to 8 Nm (71 lb-in).
