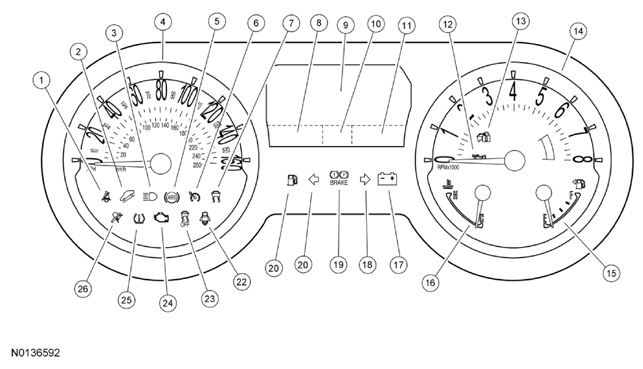

Optional IPC (Boss 302 IPC Similar)
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Safety belt warning indicator |
| 2 | - | Grade assist indicator |
| 3 | - | High beam indicator |
| 4 | Speedometer | |
| 5 | - | ABS warning indicator |
| 6 | - | Cruise control indicator |
| 7 | - | Stability/traction control indicator (sliding car icon) |
| 8 | - | Odometer |
| 9 | - | Main display area/message center display |
| 10 | - | Select shift display |
| 11 | - | Message center indicator display area |
| 12 | - | Low oil pressure warning indicator |
| 13 | - | Anti-theft indicator |
| 14 | - | Tachometer |
| 15 | - | Fuel gauge |
| 16 | - | Engine temperature gauge |
| 17 | - | Charging system warning indicator |
| 18 | - | RH turn indicator |
| 19 | - | Brake warning indicator |
| 20 | - | LH turn indicator |
| 21 | - | Low fuel warning indicator |
| 22 | - | Door ajar warning indicator |
| 23 | - | Stability/traction control disabled indicator (sliding car OFF icon) |
| 24 | MIL | |
| 25 | TPMS warning indicator | |
| 26 | Air bag warning indicator |
