Wheel Bearing and Wheel Hub: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

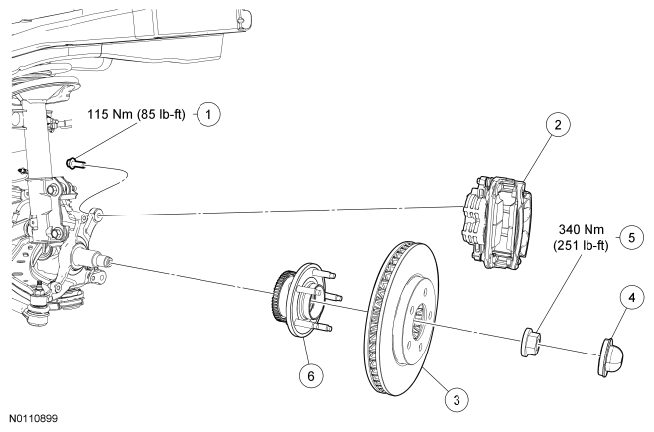

| Item |
Part Number |
Description |
| 1 |
W710233 |
Brake caliper anchor plate bolt (2 required) |
| 2 |
- |
Brake caliper, pads and anchor plate assembly |
| 3 |
1125 |
Brake disc |
| 4 |
1N135 |
Wheel hub grease cap |
| 5 |
3B477 |
Wheel hub nut |
| 6 |
1104 |
Wheel hub assembly |
