Spring - Coil: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

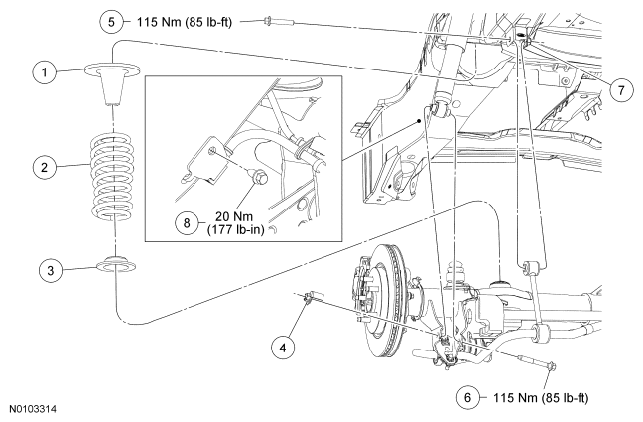

Rear stabilizer bar equipped shown, non-equipped similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 5599 | Upper spring insulator |
| 2 | 5560 | Spring |
| 3 | 5536 | Lower spring insulator |
| 4 | - | Shock absorber lower nut (part of service kit 18008) |
| 5 | W708737 | Stabilizer bar link bolt |
| 6 | - | Shock absorber lower bolt (part of service kit 18008) |
| 7 | W712385 | Stabilizer bar link nut |
| 8 | N802191 | Brake hose bracket bolt |
