1st/2nd and 3rd/4th Shift Rail Assembly

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

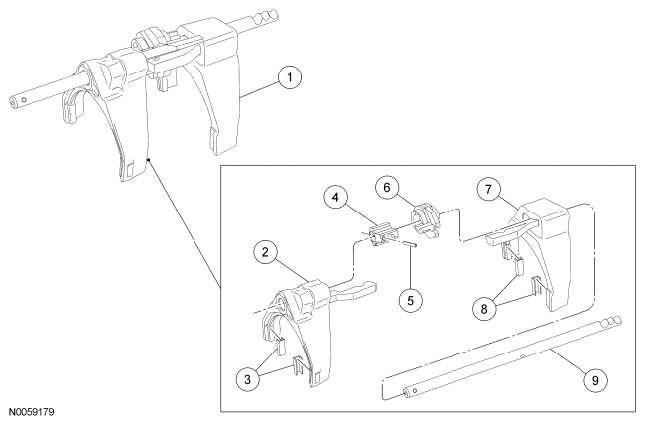

Fig 1: Exploded View Of 1st/2nd And 3rd/4th Shift Rail Assembly
G06384405Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - 1st/2nd and 3rd/4th shift rail assembly
2 7230 1st/2nd shift fork and link
3 7L082 1st/2nd shift fork pads
4 7814 Selector pin
5 7A082 Roll pin
6 7K201 Interlock plate
7 7230 3rd/4th shift fork and link
8 7L082 3rd/4th shift fork pads
9 7L267 1st/2nd, 3rd/4th shift rail
