Disassembly and Assembly

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

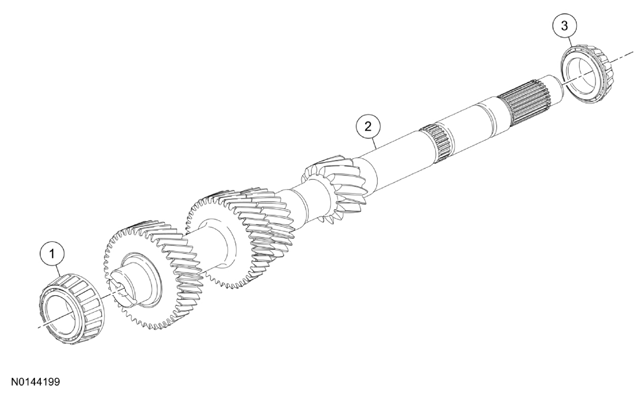

Fig 1: Exploded View Of Countershaft, Front And Rear Bearing

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7025	Countershaft front bearing
2	7113	Countershaft
3	7025	Countershaft rear bearing

Using the Bearing Puller and a press, remove the countershaft rear bearing.

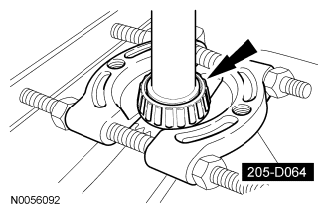

Fig 2: Countershaft Rear Bearing Puller And Press
Courtesy of FORD MOTOR CO.
Using the Bearing Puller and a press, remove the countershaft front bearing.

Fig 3: Countershaft Front Bearing Puller And Press
Courtesy of FORD MOTOR CO.
Inspect the countershaft.
- Check the countershaft surface for wear or damage. Install a new countershaft as necessary.
- Check the gear teeth for wear, pitting, scoring, spalling or fractures. Install a new countershaft as necessary.
Using the Bearing Oil Seal Plate and the Bearing Tube Remover/Installer, install the countershaft rear bearing.

Fig 4: Countershaft Rear Bearing Tube Remover/Installer
Courtesy of FORD MOTOR CO.
Using the Drive Pinion Bearing Cone Installer and the Bearing Tube Remover/Installer, install the countershaft front bearing.

Fig 5: Countershaft Front Bearing Drive Pinion Bearing Remover/Installer
