Transmission Rear Support Insulator

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

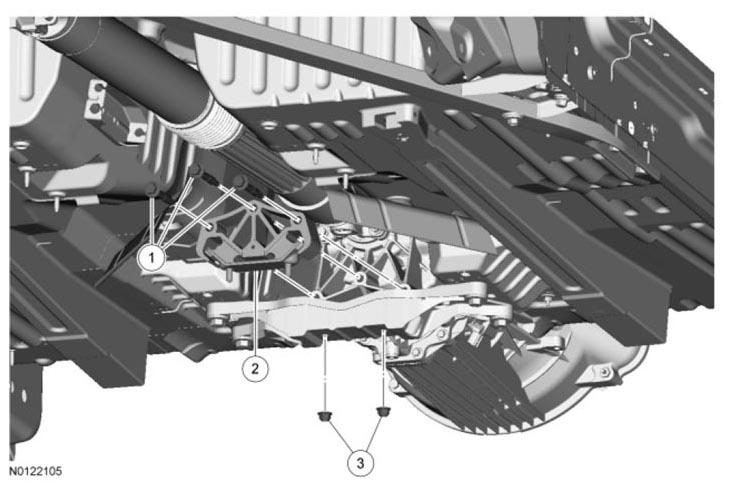

G07488645
Item Part Number Description
1 W506146 Transmission support insulator bolts (3 required)
2 6068 Transmission support insulator
3 W520113 Transmission support insulator nuts (2 required)
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the 2 transmission support insulator nuts.
    • To install, tighten to 70 Nm (52 lb-ft).

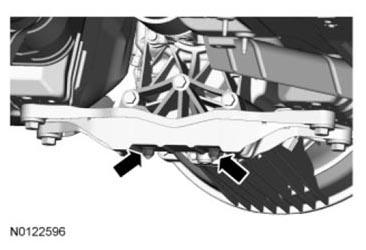

      G07488646
  3. Using a suitable transmission jack, support the transmission.
  4. Remove the 3 transmission support insulator bolts and the transmission support insulator.
    • To install, tighten to 103 Nm (76 lb-ft).

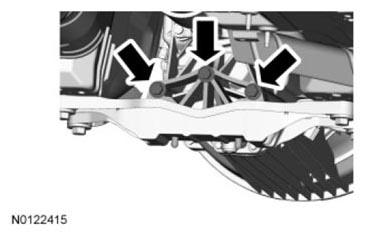

      G07488647
  5. To install, reverse the removal procedure.
