Removal and Installation

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Support the transmission with a suitable transmission jack.

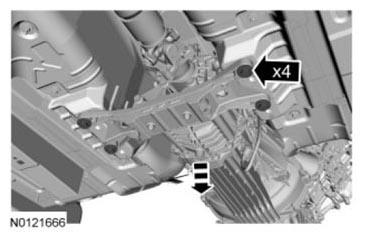

  3. Remove the 4 transmission crossmember bolts and lower the transmission to gain access to the skip shift solenoid.
    G07488637
  4. Disconnect the skip shift solenoid electrical connector.
    G07488422
  5. Remove the 2 skip shift solenoid bolts and the skip shift solenoid.
    G07488639

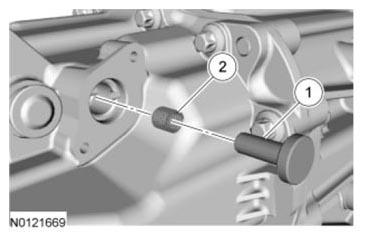

  6. Using a magnetic tool, remove the skip shift solenoid pin and spring from the transmission.
    1. Remove the skip shift solenoid pin.
    2. Remove the skip shift solenoid pin spring.
      G07488640
