Skip Shift Solenoid: Installation

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

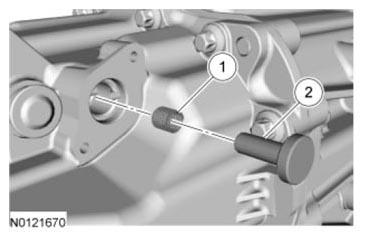

  1. Install the skip shift solenoid spring and pin into the transmission.
    1. Install the skip shift solenoid pin spring.
    2. Install the skip shift solenoid pin.
      G07488641
  2. Seat the skip shift solenoid into the transmission and hold, while securing the 2 skip shift solenoid bolts.
    • Tighten to 10 Nm (89 lb-in).
      G07488639

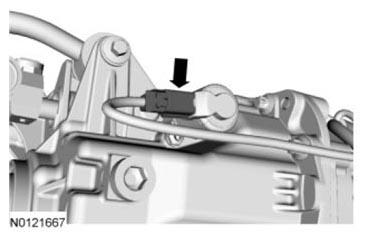

  3. Connect the skip shift solenoid electrical connector.
    G07488422

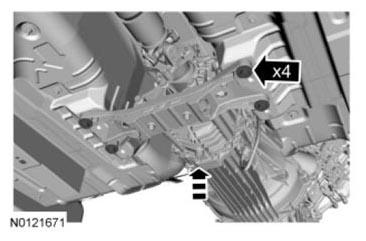

  4. Raise the transmission and install the 4 transmission crossmember bolts.
    • Tighten to 63 Nm (46 lb-ft).
      G07488644
