Output Shaft Seal: Removal

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Support the transmission with a suitable transmission jack.

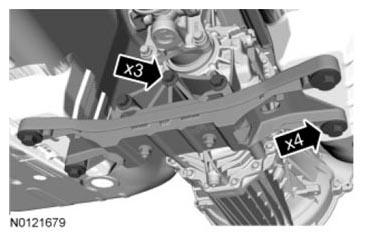

  3. Remove the 4 transmission crossmember bolts and the 3 transmission support insulator bolts and remove transmission support insulator and crossmember.
    G07488613

    Vehicles equipped with a 5.0L (4V) engine

  4. NOTE: The driveshaft center bearing is spaced from the body by 2 washers that will fall off of the bearing when the bolts are removed.

    Remove and discard the 2 driveshaft center bearing bolts and position the driveshaft aside.

    G07488614

    All vehicles

  5. Index mark the driveshaft flange to the output shaft flange, remove and discard the 4 bolts and position the driveshaft aside.
    G07488615

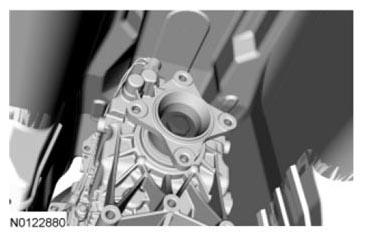

  6. Remove the output shaft flange bolt.
    G07488616

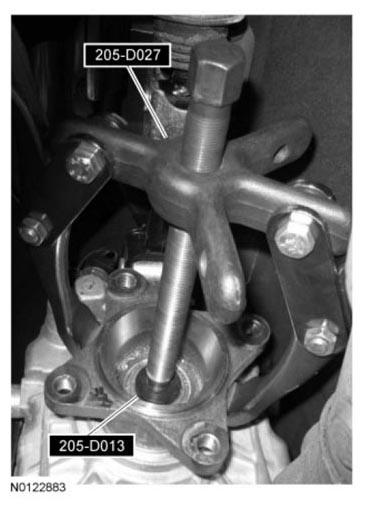

  7. Using the 2 or 3 Jaw Puller and the Step Plate, remove the output shaft flange.
    G07488617
  8. Using a suitable tool, remove and discard the output shaft seal.
