Output Shaft Seal: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| 2 or 3 Jaw Puller 205-D027 (D80L-1013-A) or equivalent |
|
| Handle 205-153 (T80T-4000-W) |
|
| Holding Tool, Drive Pinion Flange 205-478 |
|
| Holding Tool, Rear Flange 308-807 |
|
| Installer, Rear Flange 308-808 |
|
| Installer, Rear Seal 308-811 |
|
| Installer, Synchro Gear Pack 308-809 |
|
| Step Plate 205-D013 (D80L-630-2) or equivalent |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Threadlock 262 TA-26 |
WSK-M2G351-A6 |

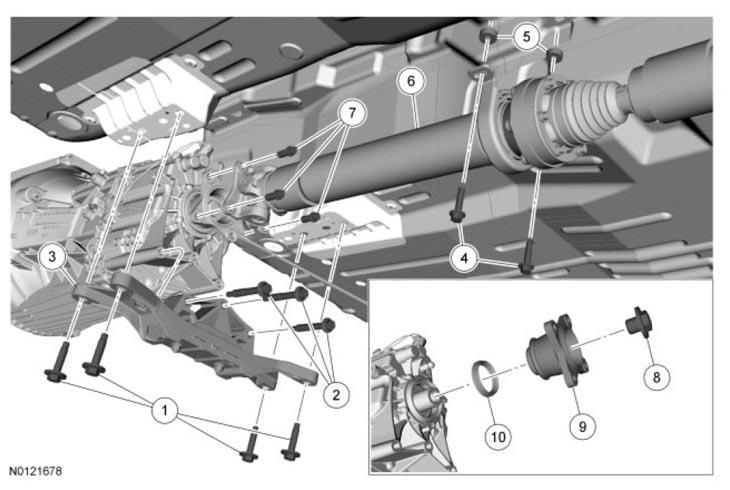

| Item | Part Number | Description |
|---|---|---|
| 1 | W505466 | Transmission crossmember bolts (4 required) |
| 2 | W506146 | Transmission support insulator bolts (3 required) |
| 3 | 6068 | Transmission support insulator |
| 4 | N506434 | Center bearing bolts (2 required) |
| 5 | W710432 | Driveshaft center bearing spacers (2 required) |
| 6 | 4K145 | Driveshaft assembly |
| 7 | N800594 | Driveshaft flange bolts (4 required) |
| 8 | 7J090 | Output shaft flange bolt |
| 9 | 4K177 | Output shaft flange |
| 10 | 7052 | Output shaft seal |
