Gearshift Lever
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

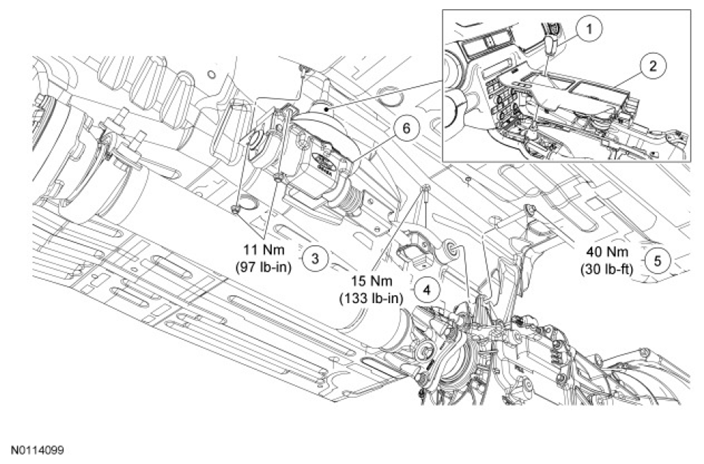

| Item | Part Number | Description |
|---|---|---|
| 1 | 7K327 | Gearshift knob |
| 2 | 044D90 | Center console finish panel |
| 3 | W520101 | Gearshift lever nuts (2 required) |
| 4 | 7C211 | Gearshift lever bolt |
| 5 | W715200 | Gearshift lever-to-transmission bolt |
| 6 | 7C453 | Gearshift lever assembly |
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
- Rotate the gearshift knob counterclockwise, remove the gearshift knob and position the center console finish panel aside.
- Remove the driveshaft. For additional information, refer to DRIVESHAFT .
- Remove the 4 subframe cross brace bolts and the subframe cross brace.
- To install, tighten to 48 Nm (35 lb-ft).
- Using a suitable transmission jack, support the transmission.
- Remove the crossmember. For additional information, refer to UNI-BODY, SUBFRAME AND MOUNTING SYSTEM .
- Lower the transmission.
- Remove the 2 gearshift lever nuts.
- To install, tighten to 11 Nm (97 lb-in).
- Remove the gearshift lever assembly.
- Remove the gearshift lever bolt.
- To install, tighten to 15 Nm (133 lb-in).
- Remove the gearshift lever-to-transmission bolt.
- To install, tighten to 40 Nm (30 lb-ft).

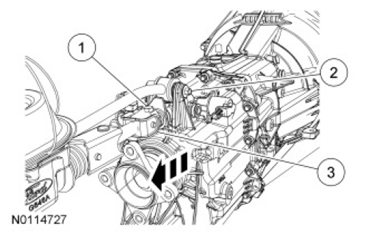

- Remove the gearshift lever assembly from the transmission by pulling towards the rear of the vehicle.
- Remove the gearshift lever bolt.
- To install, reverse the removal procedure. Before installing the center console finish panel, lightly pull up on the gearshift lever boot to fully seat the gearshift lever boot in the pan.
