Output Shaft: Disassembly

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Hand-tighten the Bearing Puller to prevent gear damage.
NOTE: Support the output shaft while using the press to prevent damage to the shaft or gears.
  1. Remove the 5th/6th gear synchronizer assembly snap ring.
    G07488790
  2. Using the Bearing Puller and a hydraulic press, remove the 5th/6th gear synchronizer assembly.
    • Inspect the 5th/6th gear synchronizer assembly and the 6th gear synchronizer ring and cone for wear or damage. Install new components as necessary.

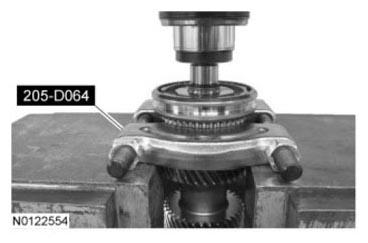

      G07488791
  3. Remove the 6th gear.
    • Inspect the 6th gear for wear or damage. Install a new gear as necessary.
      G07488792
  4. Remove the 6th gear needle bearing.
    • Inspect the 6th gear needle bearing for wear or damage. Install a new needle bearing as necessary.

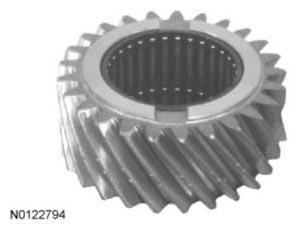

      G07488793
  5. Inspect the output shaft for scoring or worn or damaged splines. Install a new output shaft as necessary.
