Output Shaft: Assembly

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Lubricate all components with the recommended transmission fluid before reassembling.

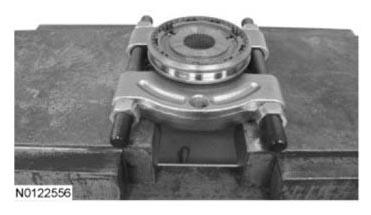

  1. Position the 5th/6th gear synchronizer assembly on the Bearing Puller and a hydraulic press.
    G07488794

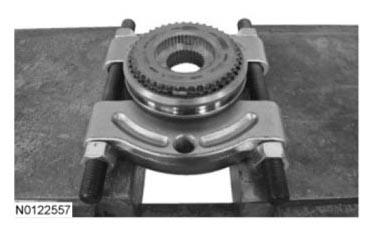

  2. NOTE: The 3 synchronizer ring tabs must engage into the 3 synchronizer assembly slots or damage to the synchronizer assembly and synchronizer ring can occur.

    Install the 6th gear synchronizer ring and cone.

    • Align the 3 synchronizer ring tabs with the 3 synchronizer assembly slots.
      G07488795
  3. Install the 6th gear needle bearing.
    G07488793

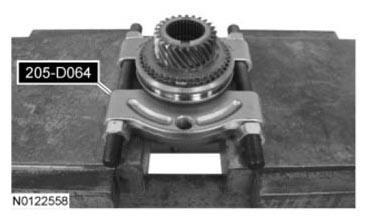

  4. Install the 6th gear.
    G07488797

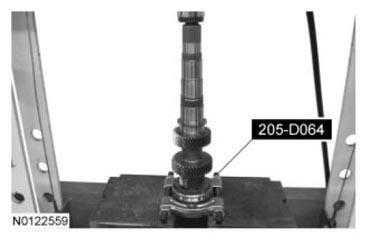

  5. Using the Bearing Puller and a hydraulic press, install the 5th/6th gear synchronizer assembly and the 6th gear.
    G07488798
  6. Install the 5th/6th gear synchronizer assembly snap ring.
    G07488790
