Transmission Insulator and Retainer
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

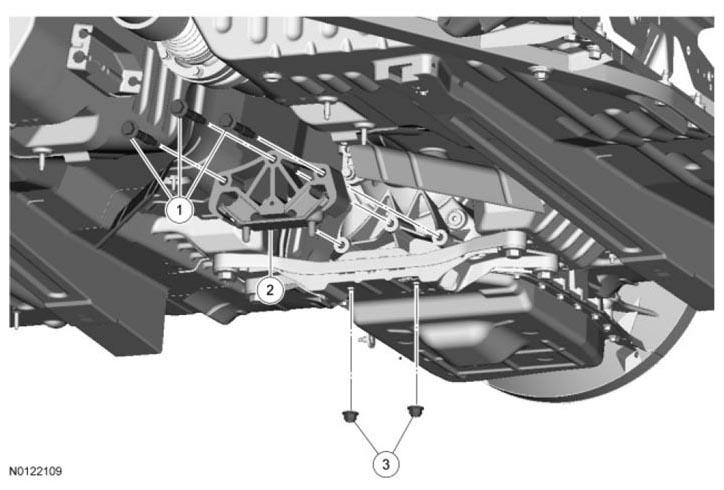

| Item | Part Number | Description |
|---|---|---|
| 1 | W506146 | Transmission support insulator-to-transmission bolts (3 required) 103 Nm (76 lb-ft) |
| 2 | 6068 | Transmission support insulator |
| 3 | W520113 | Transmission support insulator nuts (2 required) 70 Nm (52 lb-ft) |
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .

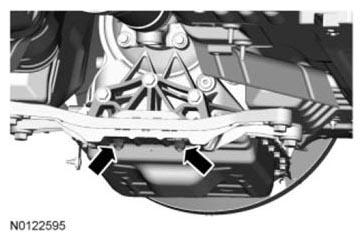

- Remove the 2 transmission support insulator nuts.
- Using a suitable transmission jack, support the transmission.

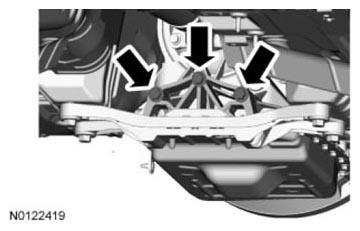

- Remove the 3 bolts and the transmission support insulator.
- To install, reverse the removal procedure.
