Shift Solenoids (SS): Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC (US); CXT-10-LV12 (Canada) |
MERCON® LV |

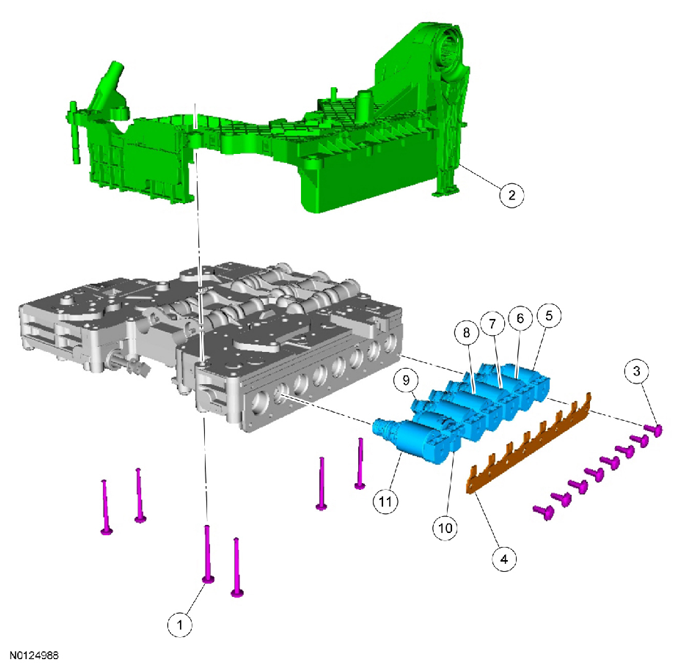

| Item | Part Number | Description |
|---|---|---|
| 1 | W707884 | Main control-to-molded leadframe bolts |
| 2 | 7G267 | Molded leadframe |
| 3 | W707885 | Solenoid hold-down bracket bolt (8 required) |
| 4 | 7Z369 | Solenoid hold-down bracket |
| 5 | 7G383 | Shift Solenoid A (SSA) Forward (1, 2, 3, 4) clutch, normally low Variable Force Solenoid (VFS). |
| 6 | 7G383 | Shift Solenoid B (SSB) Direct (3, 5, R) clutch, normally high VFS. |
| 7 | 7G383 | Shift Solenoid C (SSC), Intermediate (2, 6) clutch, normally low VFS. |
| 8 | 7G383 | Line Pressure Control (LPC) normally high VFS. |
| 9 | 7G383 | Shift Solenoid D (SSD), low/reverse/overdrive clutch, normally high VFS. |
| 10 | 7G484 | Shift Solenoid E (SSE), normally off ON/OFF solenoid. |
| 11 | 7G383 | Torque Converter Clutch (TCC) normally low VFS. |
