Output Shaft Seal: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Rear Seal Installer 4X2 307-638 |
|
| Remover, Input Shaft Oil Seal 308-375 |
|
| Slide Hammer 100-001 (T50T-100-A) |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC (US); CXT-10-LV12 (Canada) |
MERCON® LV |

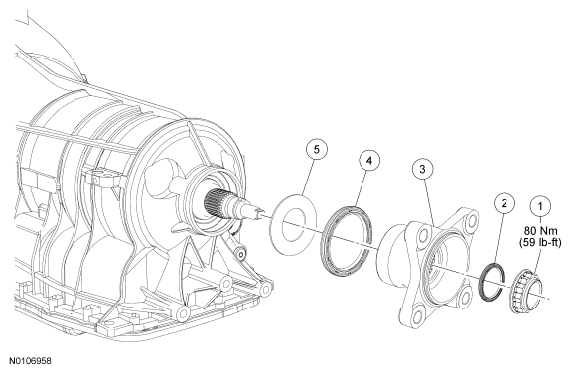

| Item | Part Number | Description |
|---|---|---|
| 1 | 7045 | Output shaft flange nut |
| 2 | 7052 | Extension housing flange seal |
| 3 | 7089 | Output shaft flange |
| 4 | 7052 | Output shaft seal |
| 5 | 7N357 | Slip plane washer |
