Output Shaft Seal: Installation

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position a new output shaft seal.
    Fig 1: Locating Output Shaft Seal
    G06127227Courtesy of FORD MOTOR CO.
  2. Using the Rear Seal 4X2 Installer, install the output shaft seal.
    Fig 2: Installing Output Shaft Seal
    G06127228Courtesy of FORD MOTOR CO.
  3. Inspect the output shaft flange seal for damage and install a new seal if damaged. Install the output shaft flange.

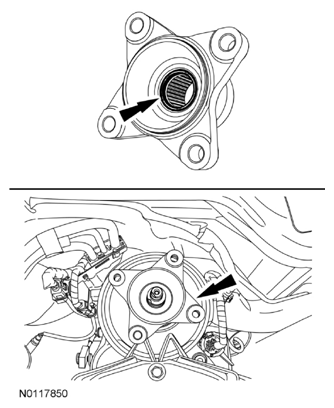

    Fig 3: Locating Output Shaft Flange Seal
    G07990032Courtesy of FORD MOTOR CO.
  4. Install a new output shaft flange nut.
    • Tighten to 80 Nm (59 lb-ft).
    • After installing the new output shaft flange nut, it must be staked at the slots to prevent it from coming loose.

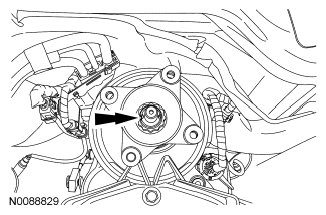

      Fig 4: Locating Output Shaft Flange Nut
      G06456435Courtesy of FORD MOTOR CO.
  5. Install the driveshaft. For additional information, refer to DRIVESHAFT .
  6. Fill and check the transmission fluid. For additional information, refer to TRANSMISSION FLUID LEVEL CHECK .
