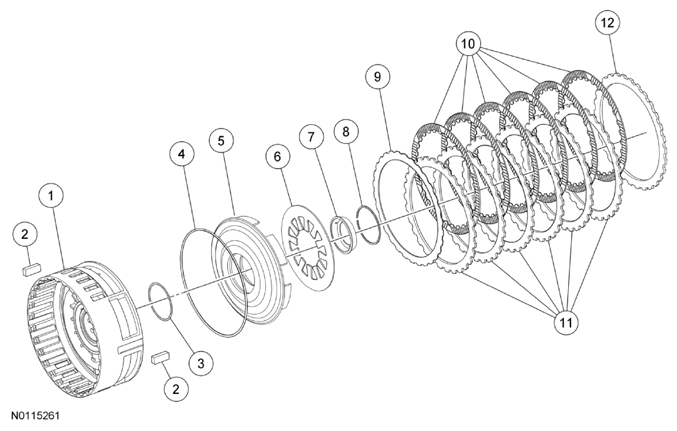

Low/Reverse Clutch Assembly: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 7A130 | Intermediate/low/reverse clutch center support |
| 2 | 7B220 | Center support keys (2 required) |
| 3 | 7F225 | Low/reverse clutch piston center seal |
| 4 | 7D403 | Low/reverse clutch cylinder outer seal |
| 5 | 7A262 | Low/reverse clutch piston |
| 6 | 7B070 | Low/reverse clutch return spring |
| 7 | 7H318 | Low/reverse clutch return spring retainer |
| 8 | 7D483 | Low/reverse clutch return spring snap ring |
| 9 | 7E085 | Low/reverse clutch cushion spring |
| 10 | 7B164 | Low/reverse clutch internal splined friction plates (internally splined to the rear planetary carrier) |
| 11 | 7B442 | Low/reverse clutch external splined steel plates (externally splined to the case) |
| 12 | 7B066 | Low/reverse clutch pressure plate (externally splined to the case) (select fit) |
