Electrical Operation
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

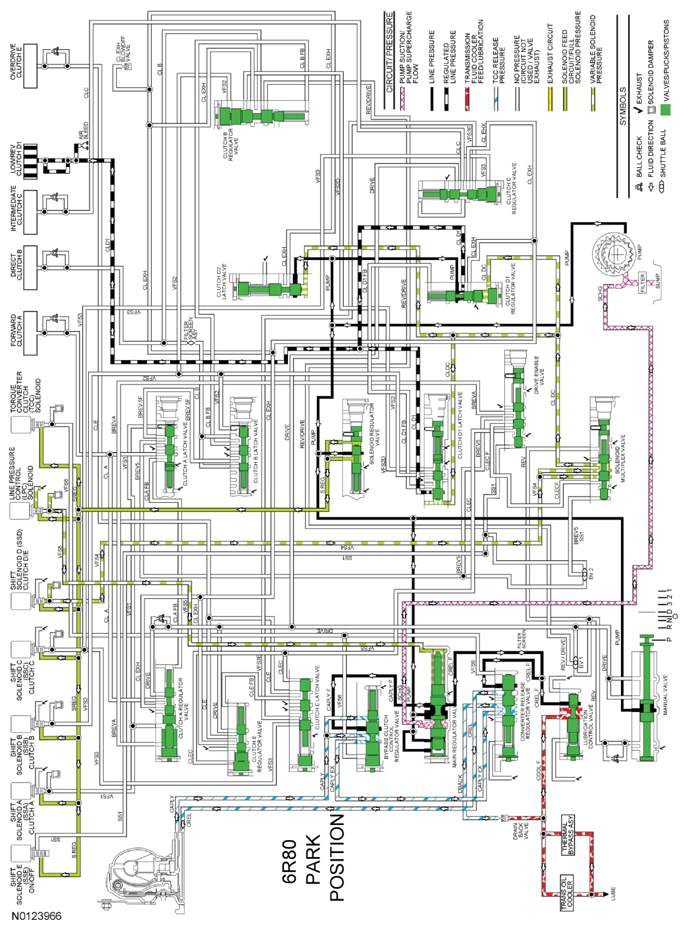

Solenoid operation:
PARK POSITION SOLENOID OPERATION CHART
| Selector Lever Position | PCM Commanded Gear | Shift Solenoid | TCC NL | ||||
|---|---|---|---|---|---|---|---|
| SSA NL (1, 2, 3, 4) | SSB NH (3, 5, R) | SSC NL (CB 2, 6) | SSD NH (CB L/R 4, 5, 6) | SSE NC | |||
| P | P | Off | On | Off | On | On | Off |
| CB = Clutch brake NC = Normally closed NH = Normally high NL = Normally low |
|||||||
For solenoid information, refer to TRANSMISSION ELECTRONIC CONTROL SYSTEM .
