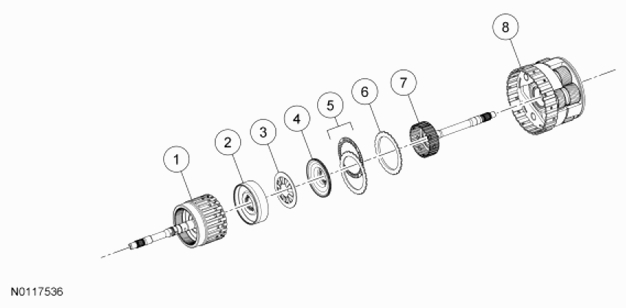

Overdrive Clutch (E) Exploded View
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Description |
| 1 |
Input shaft assembly |
| 2 |
Overdrive clutch piston |
| 3 |
Overdrive clutch piston return spring |
| 4 |
Overdrive clutch balance piston |
| 5 |
Overdrive clutch friction and steel plates |
| 6 |
Overdrive clutch pressure plate |
| 7 |
Intermediate shaft |
| 8 |
Rear planetary carrier assembly |
