Lubrication Passages

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

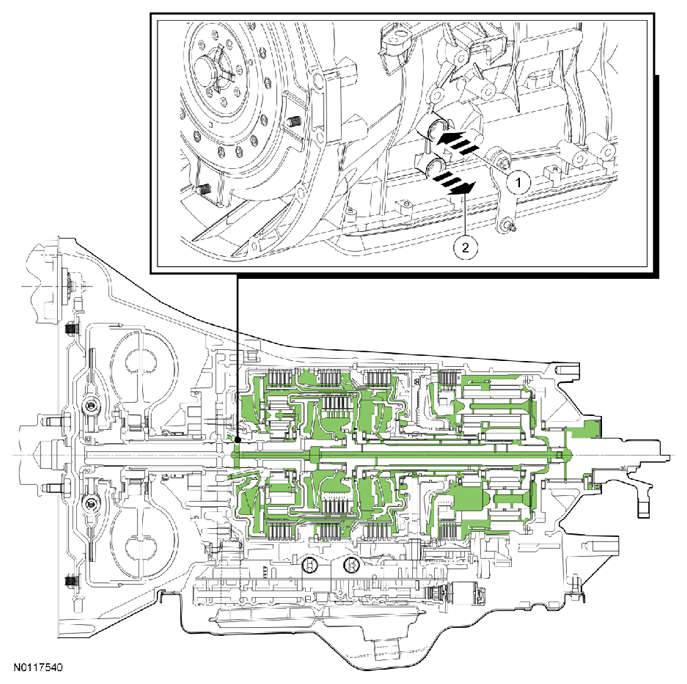

G08340342
Item Description
1 Transmission fluid cooler return (inlet from the transmission fluid cooler)
2 Transmission fluid cooler pressure (outlet to the transmission fluid cooler)
