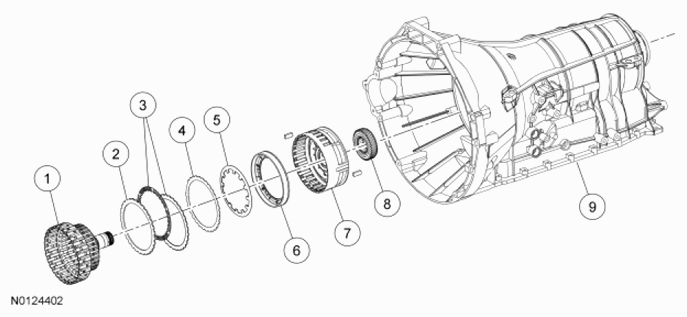

Intermediate Clutch (C) Exploded View
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Direct clutch cylinder |
| 2 | Intermediate clutch pressure plate |
| 3 | Intermediate clutch friction and steel plates |
| 4 | Intermediate clutch wave spring |
| 5 | Intermediate clutch piston return spring |
| 6 | Intermediate clutch piston |
| 7 | Center support assembly |
| 8 | Rear planetary sun gear No. 2 |
| 9 | Transmission case |
