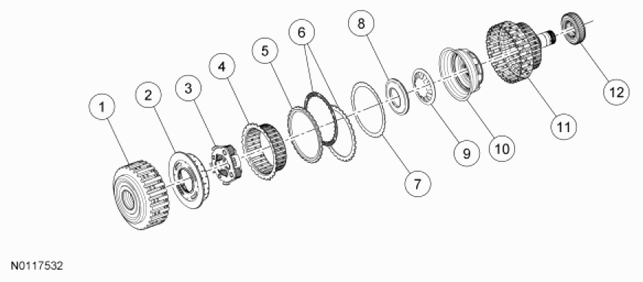

Direct Clutch (B) Exploded View
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Forward clutch cylinder |
| 2 | Forward clutch balance piston |
| 3 | Front planetary carrier assembly |
| 4 | Direct clutch hub |
| 5 | Direct clutch pressure plate |
| 6 | Direct clutch friction and steel plates |
| 7 | Direct clutch wave spring |
| 8 | Direct clutch balance piston |
| 9 | Direct clutch piston return spring |
| 10 | Direct clutch piston |
| 11 | Direct clutch cylinder |
| 12 | Rear planetary sun gear No. 2 |
