Overdrive Clutch (E) Hydraulic Circuits

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

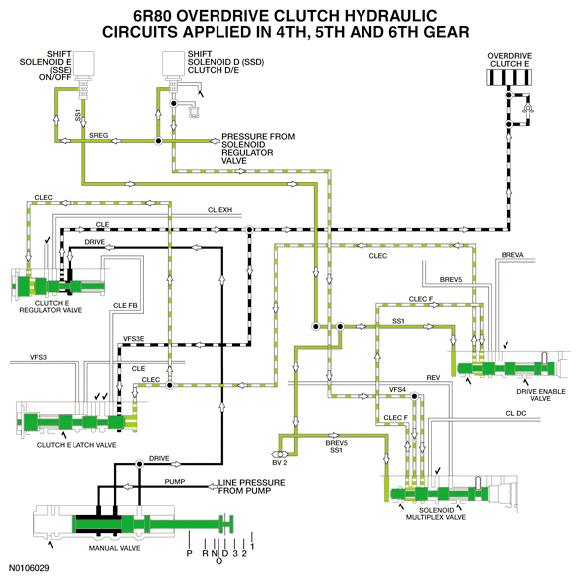

To apply the overdrive clutch (E), the manual valve must be in the DRIVE position. Line pressure is supplied to the clutch E regulator valve.

SSD provides regulated solenoid pressure from the SREG circuit to the solenoid multiplex valve through the VFS4 circuit. SSE supplies pressure to the solenoid multiplex valve and the drive enable valve to position the valves to direct pressure from the VFS4 circuit to the CLEC F and CLEC circuits to position the clutch E regulator and latch valves to apply the overdrive clutch (E). As the overdrive clutch (E) is applied, SSD increases pressure to the clutch E regulator and latch valve.

The clutch E regulator valve provides regulated line pressure from the DRIVE circuit to the CLE circuit to apply the overdrive clutch (E).

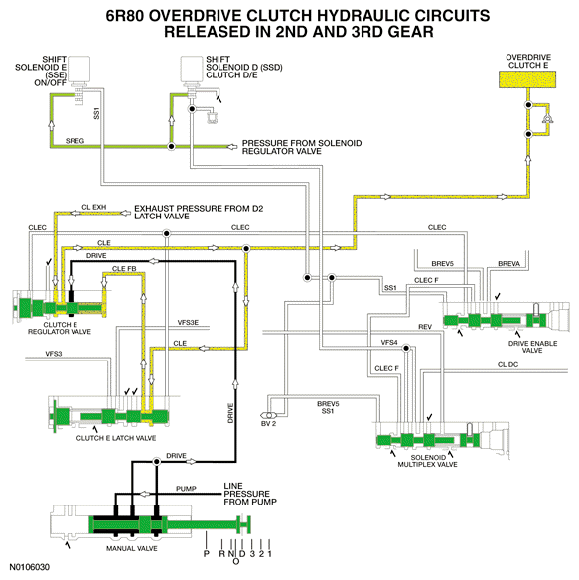

To release the overdrive clutch (E), the manual valve can be in any position. SSD lowers pressure to the VFS4 circuit which lowers pressure in the CLEC and CLEC F circuits and releases the overdrive clutch (E). SSE blocks SREG pressure to the solenoid multiplex valve and the drive enable valve to allow SSD to control low/reverse clutch (D) operation.

When the overdrive clutch (E) is released, the clutch E regulator valve directs exhaust circuit pressure from the CL EXH circuit to the CL E circuit to fill the circuit and the clutch with fluid at low pressure, approximately 21 kPa (3 psi).
