Low/Reverse Clutch (D) Hydraulic Circuits

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

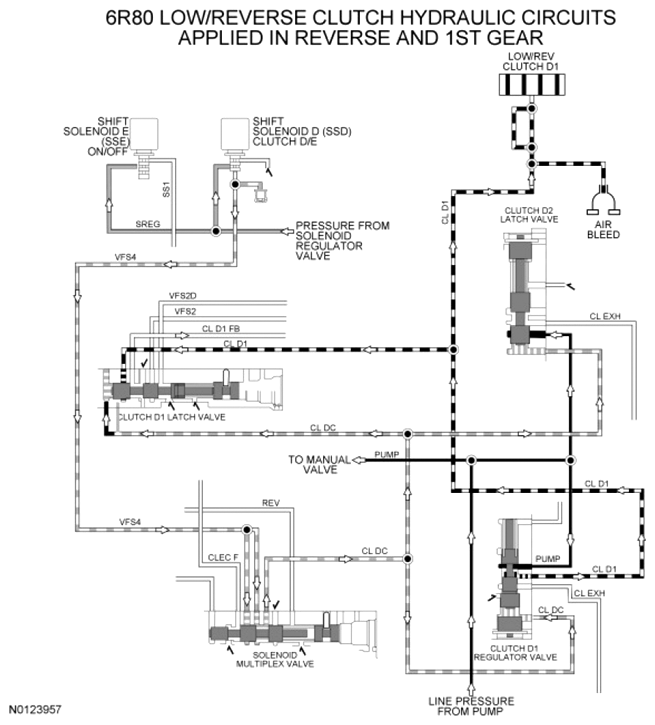

To apply the low/reverse clutch (D), the manual valve can be in any position. Line pressure is supplied to the D1 regulator and latch valves by the pump through the PUMP circuit.

SSD provides regulated solenoid pressure from the SREG circuit to the solenoid multiplex valve through the VFS4 circuit where it is directed to the D1 regulator and latch valves through the CL DC circuit to position the valves to apply the low/reverse clutch (D). As the low/reverse clutch (D) is applied, SSD increases pressure to the D1 clutch regulator and latch valves.

The clutch D1 regulator valve provides regulated line pressure from the PUMP circuit to the CL D1 circuit to apply the low/reverse clutch (D).

To release the low/reverse clutch (D), the manual valve can be in the DRIVE, 3 or 2 position. SSD lowers pressure to the VFS4 circuit which lowers pressure in the CL DC circuit to position the D clutch regulator and latch valves to lower pressure in the CL D1 circuit and release the low/reverse clutch (D).

When the low/reverse clutch (D) is released, the clutch D2 latch valve directs line pressure regulated to approximately 21 kPa (3 psi) to the CL EXH circuit which fills the volume of the unused clutches and circuits.

When the low/reverse clutch (D) is released, the CL EXH circuit supplies the D1 regulator valve which fills the CL D1 circuit and the low/reverse (D) clutch.
