Vehicle Identification Number (VIN) Locator

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

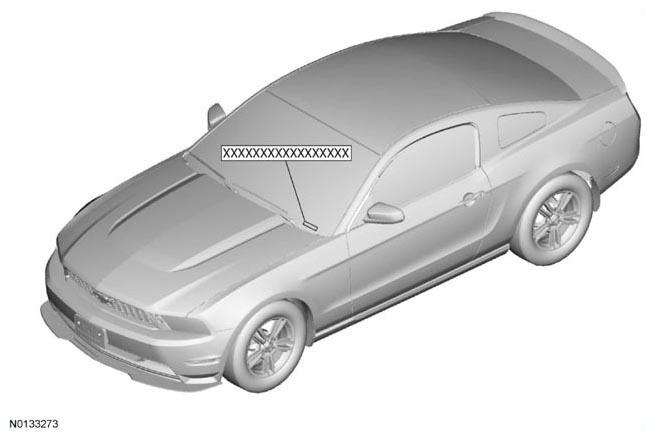

Fig 1: Identifying Vehicle Identification Number Locator
G08642117Courtesy of FORD MOTOR CO.

The Vehicle Identification Number (VIN) is a 17-digit alphanumeric code. The VIN is stamped on a metal tab riveted to the instrument panel, top upper left of the dash. The VIN number is also found on the Vehicle Certification (VC) label.

If the VIN plate requires replacement, authorized dealers must contact their respective regional office.

Fig 2: Identifying VIN Plate
G08617066Courtesy of FORD MOTOR CO.
Item Description
1 World Manufacturer Identifier (WMI)
2 Restraint-type code
3 Line and series
4 Engine code
5 Computer-generated check digit
6 Model year code
7 Assembly plant code
8 Production sequence number
