Pliers Symbols
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

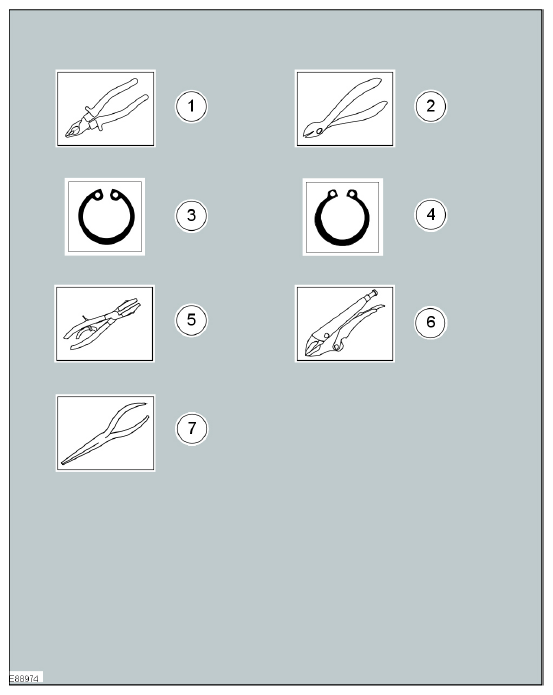

The plier symbols are used to show which pliers is recommended to carry out a procedure step.
Courtesy of FORD MOTOR CO.
| Item |
Description |
| 1 |
Combination pliers |
| 2 |
Side cutter pliers |
| 3 |
Securing ring - inner |
| 4 |
Securing ring - outer |
| 5 |
Hose clamp pliers |
| 6 |
Locking pliers |
| 7 |
Long nose pliers |
