Material Symbols
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

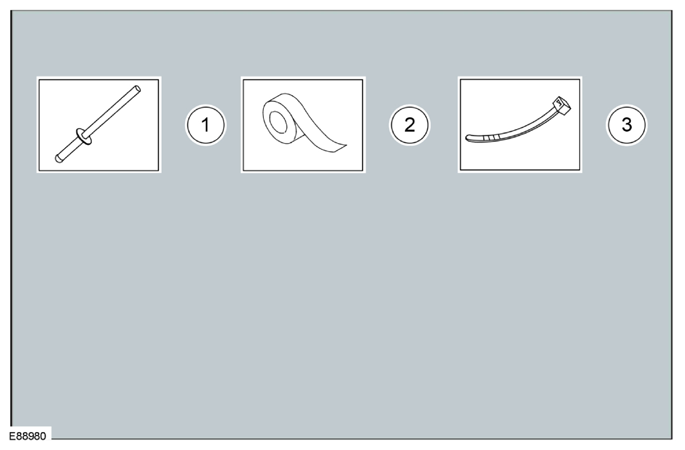

The material symbols are used to show where to use which type of material to carry out a procedure step.
Courtesy of FORD MOTOR CO.
| Item |
Description |
| 1 |
Remove/Install the specified blind rivet |
| 2 |
Apply tape to the specified component/area |
| 3 |
Remove/Install the specified cable tie |
