Removal and Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the license plate lamp harness from the rear bumper.

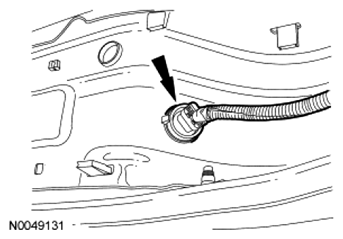

Fig 1: Locating Rear Bumper License Plate Lamp Harness
Courtesy of FORD MOTOR CO.
If equipped, disconnect the rear park aid harness.
Remove the 4 rear bumper-to-bracket nuts.
- To install, tighten to 115 Nm (85 lb-ft).

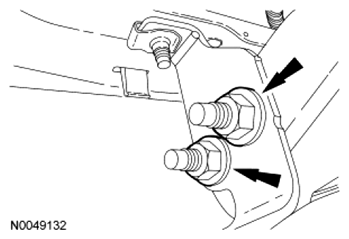

  Fig 2: Locating Rear Bumper-To-Bracket Nuts
  Courtesy of FORD MOTOR CO.
NOTE: The aid of an assistant is required to remove the bumper.

Remove the 2 rear bumper bolts and retainers (1 each side).
Remove the rear bumper from the vehicle.
To install, reverse the removal procedure.
- Transfer all necessary components.
