Pickup Bed Alignment

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The pickup bed bolts are different lengths. Pay particular attention to the location of the bolts to avoid the risk of damage to surrounding components during installation.

Remove and discard pickup bed bolts.

Fig 1: Locating Pickup Bed Bolts
Courtesy of FORD MOTOR CO.
Move the pickup bed so the front of the bed is centered on the rear of the cab.
Adjust the pickup bed to specification.

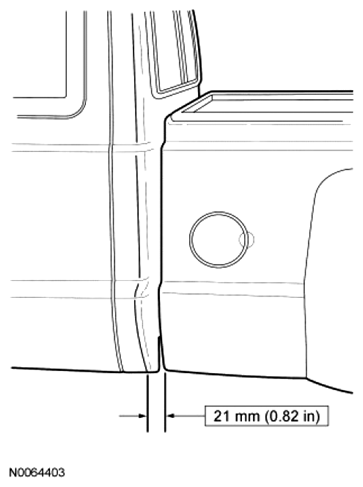

Fig 2: Identifying Pickup Bed Adjustment Length
Courtesy of FORD MOTOR CO.
Tighten the pickup bed bolts.
- Tighten to 80 Nm (59 lb-ft).

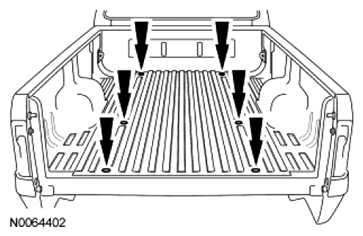

Fig 3: Locating Pickup Bed Bolts
