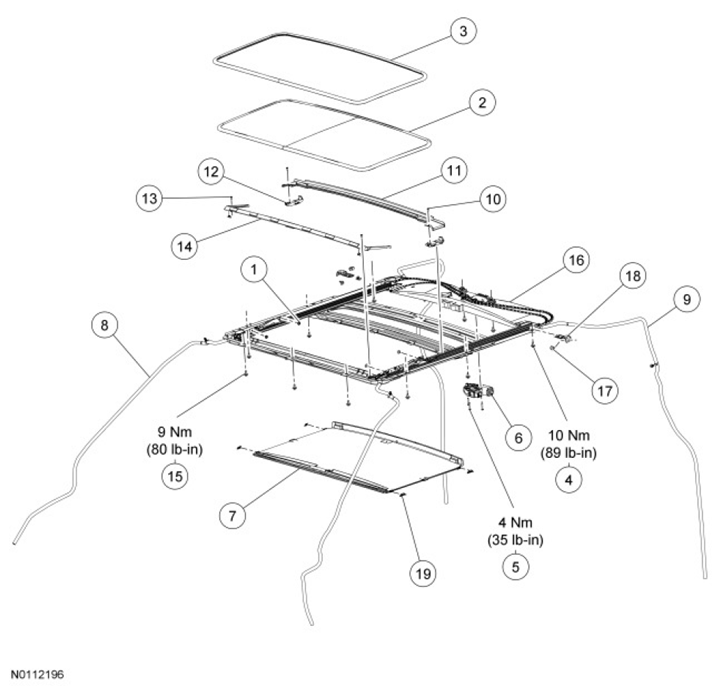

Roof Opening Panel - Exploded View
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 26502F24 | Roof opening panel glass screw (4 required) |
| 2 | 18500A18 | Roof opening panel glass |
| 3 | 7851884 | Roof opening panel weatherstrip |
| 4 | W505434 | Roof opening panel frame-to-B-pillar bracket bolts (4 required) |
| 5 | 15C682 | Roof opening panel motor bolt (3 required) |
| 6 | 15790 | Roof opening panel motor/module |
| 7 | 78519A02 | Roof opening panel shield |
| 8 | 18502C52 | Roof opening panel front drain hose (2 required) |
| 9 | 18502C52/16502C52 | Roof opening panel rear drain hose (2 required) |
| 10 | 26502F36 | Roof opening panel trough screw |
| 11 | 7854022 | Roof opening panel trough |
| 12 | 78500A64 RH/78500A65 LH | Roof opening panel rear trough guide |
| 13 | 26502F36 | Screw (2 required) |
| 14 | 26500A26 | Air deflector |
| 15 | W705382 | Roof opening panel frame bolts (10 required) |
| 16 | 1651070/1851070 | Roof opening panel frame |
| 17 | 18502F36 | Bolt |
| 18 | 16502074/18502P74 | Roof opening panel support bracket |
| 19 | 78502C10 | Roof opening panel shield guide feet (4 required) |
- For additional information, refer to the procedures in this article.
