Striker Adjustment: Material

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Item	Specification
Penetrating and Lock Lubricant (US); Penetrating Fluid (Canada) XL-1 (US); CXC-51-A (Canada)	-

NOTE: Before carrying out the striker adjustment, refer to STRIKER PRE-ADJUSTMENT INSPECTION .

NOTE: Scribe before removing.

Loosen the striker retaining bolts.

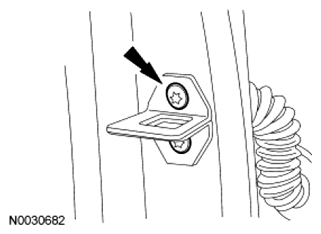

Fig 1: Loosening Striker Retaining Bolts
Courtesy of FORD MOTOR CO.
Adjust the door striker and tighten the striker retaining bolts.
- To install, tighten to 25 Nm (18 lb-ft).

  Fig 2: Locating Door Striker Retaining Bolts
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
