Door Alignment - Rear, SuperCab

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following procedure is for carrying out fore, aft, up, down and tilt adjustments.

Remove the rear door inside trim panel(s). For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
NOTE: Left rear door shown, right rear door symmetrically opposite.

Remove the upper door strikers.

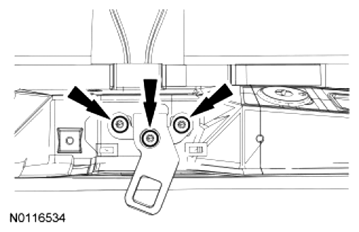

Fig 1: Locating Upper Door Striker Bolts
Courtesy of FORD MOTOR CO.
Remove the lower door strikers.

Fig 2: Removing Lower Door Strikers
Courtesy of FORD MOTOR CO.
Loosen the bolts only enough to allow for slight door movement.

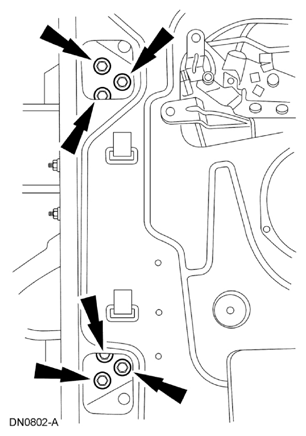

Fig 3: Locating Door Bolts
Courtesy of FORD MOTOR CO.
Close the doors and carefully adjust the rear door until correctly aligned with all bodylines and adjacent panels. For additional information, refer to BODY REPAIRS .

Fig 4: Adjusting Rear Door
Courtesy of FORD MOTOR CO.
Carefully open the doors and tighten the bolts.
- Tighten to 30 Nm (22 lb-ft).

  Fig 5: Locating Door Bolts
  Courtesy of FORD MOTOR CO.
Install and adjust the upper and lower strikers. For additional information, refer to STRIKER ADJUSTMENT .
