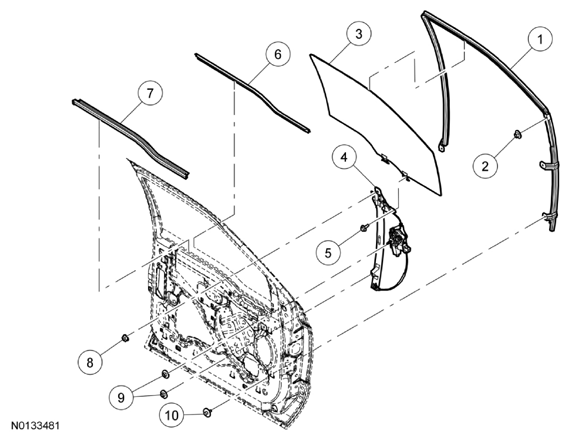

Glass, Frames and Mechanisms - Exploded View, Front Door
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH side shown, RH side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 21597 LH/21596 RH | Front door window glass run |
| 2 | N811309 | Window glass run nut |
| 3 | 21411 LH/21410 RH | Front door window glass |
| 4 | 23201 LH/23200 RH | Front door window regulator and motor assembly |
| 5 | W714438 | Glass clamp nut (2 required) |
| 6 | 21453 LH/21452 RH | Exterior belt line weatherstrip |
| 7 | 21457 LH/21456 RH | Interior belt line weatherstrip |
| 8 | - | Front door window regulator and motor assembly nut (part of 23201 LH/23200 RH) |
| 9 | W711059 | Front door window regulator and motor assembly nut (2 required) |
| 10 | W715067 | Window glass run bolt (3 required) |
- For additional information, refer to the procedures in this article.
