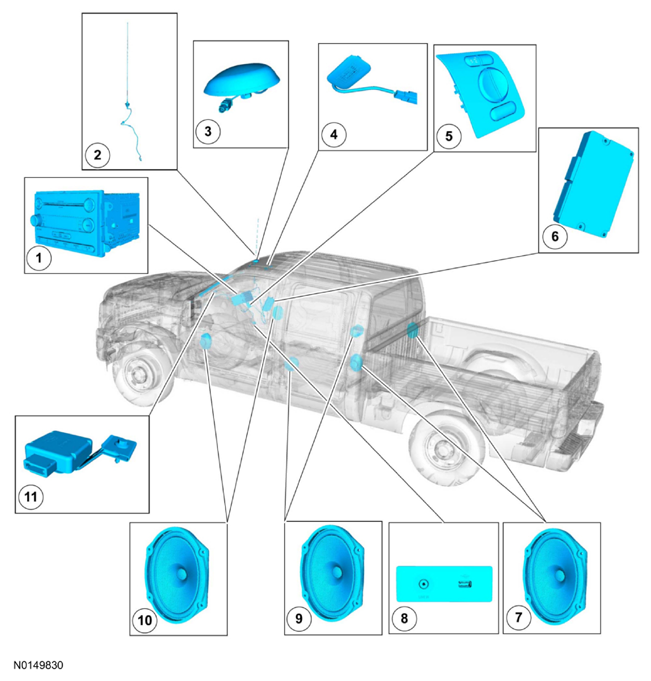

Component Location
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description | Comments |
|---|---|---|
| 1 | ACM | - |
| 2 | AM/FM antenna and AM/FM antenna coaxial cable | - |
| 3 | Satellite radio antenna | If equipped |
| 4 | SYNC® microphone | Located in the headliner |
| 5 | RH steering wheel switches | - |
| 6 | APIM | Located behind the glovebox |
| 7 | Rear quarter panel speakers | Regular Cab and Crew Cab |
| 8 | Audio input jack and USB port | - |
| 9 | Rear door speakers | SuperCab |
| 10 | Front door speakers | - |
| 11 | GPSM | Located behind the IPC |
