Instrument Panel Dimmer Switch: Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

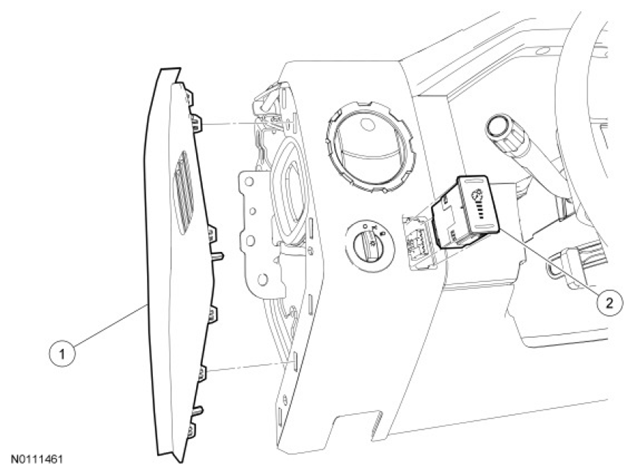

Fig 1: Identifying Instrument Panel Side Panel And Instrument Panel Dimmer Switch
G07484649Courtesy of FORD MOTOR CO.
Item Part Number Description
1 2504481 Instrument panel side panel
2 11691 Instrument panel dimmer switch
