Special Tool(s)
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| 2 or 3 Jaw Puller 205-D027 (D80L-1013-A) |
|
| Handle 205-153 (T80T-4000-W) |
|
| Holding Fixture, Drive Pinion Flange 205-126 (T78P-4851-A) |
|
| Installer, Output Shaft Oil Seal 308-403 |
|
| Remover, Torque Converter Oil Seal 307-309 (T94P-77001-BH) |
|
| Slide Hammer 100-001 (T50T-100-A) |

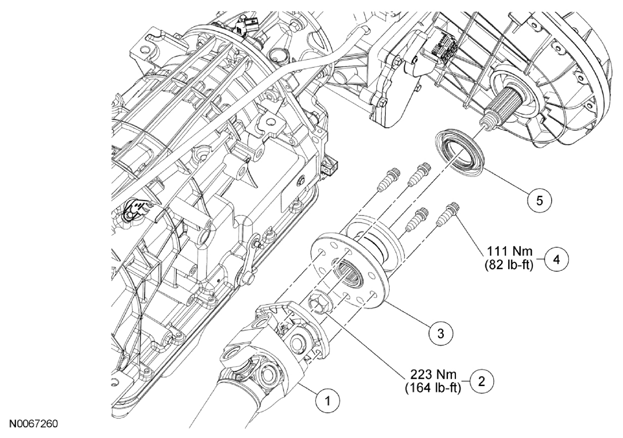

Fig 1: Front Driveshaft, Seal And Output Flange Nut And Driveshaft Flange Bolt With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 4817 | Front driveshaft |
| 2 | 7045 | Front output flange nut |
| 3 | 7B214 | Flange |
| 4 | - | Front driveshaft flange bolt |
| 5 | 7B215 | Front output seal |
