Mechanical Shift Transfer Case
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

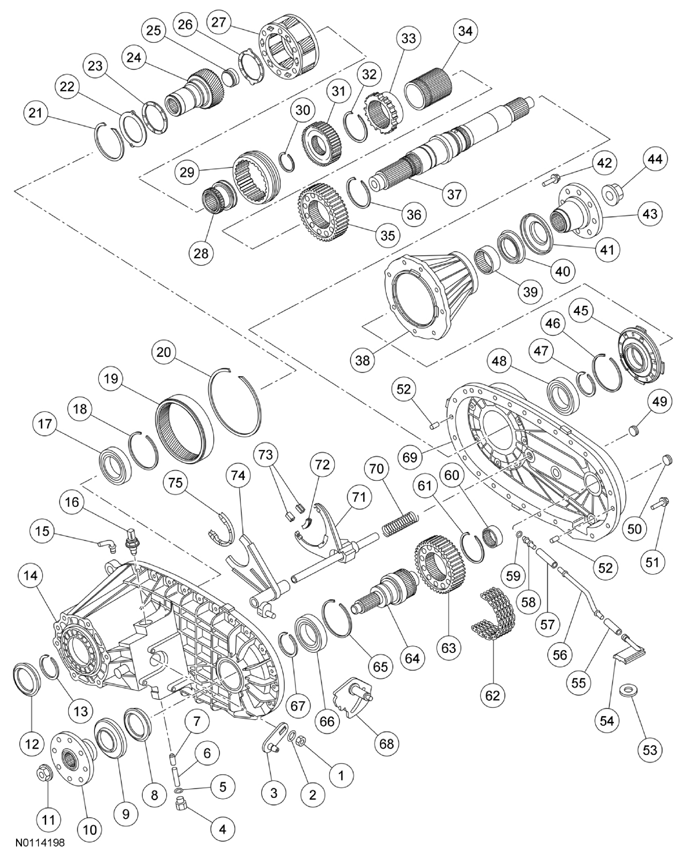

Vehicles equipped with a TorqShift® transmission shown in illustration, TorqShift®6 transmission similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 7Z114 | Locknut |
| 2 | 7Z111 | Washer |
| 3 | 7B106 | Lever assembly |
| 4 | 7L013 | Poppet screw |
| 5 | - | O-ring seal |
| 6 | 7219 | Spring |
| 7 | 7233 | Poppet |
| 8 | 7B215 | Front output seal |
| 9 | 7C016 | Slinger |
| 10 | 7B214 | Front flange |
| 11 | 7045 | Hex locknut |
| 12 | 7B215 | Input seal |
| 13 | 7079 | Input bearing retaining ring |
| 14 | 7005 | Front half case |
| 15 | 7034 | Vent |
| 16 | 7E440 | Precision 3-position switch |
| 17 | 7025 | Ball bearing, front input |
| 18 | 7N281 | Front input bearing retaining ring |
| 19 | - | Annulus gear (part of 7005) |
| 20 | 7917 | Annulus retaining ring |
| 21 | 7R516 | Lock plate retaining ring |
| 22 | 7B066 | Lock plate |
| 23 | 7Z118 | Front input gear thrust washer |
| 24 | 7017 | Input gear |
| 25 | 7120 | Pilot bearing |
| 26 | 7Z213 | Rear input gear thrust washer |
| 27 | 7A398 | Planetary carrier assembly |
| 28 | 7100 | Range shift sleeve |
| 29 | 7183 | Mode sleeve |
| 30 | 7064 | Hub retaining ring |
| 31 | 7124 | Mode hub |
| 32 | 7064 | Clutch gear retaining ring |
| 33 | 7C215 | Clutch gear |
| 34 | 7W060 | Drive sprocket hub |
| 35 | 7177 | Drive sprocket |
| 36 | 7064 | Sprocket retaining ring |
| 37 | 7061 | Mainshaft |
| 38 | 7085 | Rear retainer |
| 39 | 7118 | Needle bearing |
| 40 | 7B215 | Rear output seal |
| 41 | 7C016 | Slinger |
| 42 | 7A443 | Retainer bolt |
| 43 | 7B214 | Rear flange |
| 44 | 7045 | Nut |
| 45 | 7A149 | Oil pump assembly |
| 46 | 7R141 | Retaining ring |
| 47 | 7030 | Retaining ring |
| 48 | 7015 | Ball bearing |
| 49 | 7A010 | Fill plug |
| 50 | 7A010 | Drain plug |
| 51 | 7A443 | Rear case bolt |
| 52 | 7D362 | Dowel bushings |
| 53 | 7E290 | Chip collector magnet |
| 54 | 7A098 | Oil screen |
| 55 | 7N148 | Lower tube connector |
| 56 | 7A210 | Lower oil tube |
| 57 | 7N148 | Upper tube connector |
| 58 | 7A210 | Upper oil tube |
| 59 | 7288 | O-ring seal |
| 60 | 7127 | Needle bearing |
| 61 | 7064 | Sprocket retaining ring |
| 62 | 7A029 | Drive chain |
| 63 | 7177 | Driven sprocket |
| 64 | 7061 | Front output shaft |
| 65 | 7049 | Retaining ring |
| 66 | 7025 | Front oil pump ball bearing |
| 67 | 7917 | Front oil pump retaining ring |
| 68 | 7F063 | Sector assembly |
| 69 | 7005 | Rear case half |
| 70 | 7219 | Mode spring |
| 71 | 7289 | Mode fork assembly |
| 72 | 7C430 | Mode fork center pad |
| 73 | 7C430 | Mode fork end pads |
| 74 | 7289 | Range fork assembly |
| 75 | 7C430 | Range shift fork pad |
