Transmission Fluid Cooler Tubes - 6.8L: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Install the rear transmission fluid cooler tubes in the vehicle and connect the transmission fluid cooler tubes to the transmission case.
- Tighten to 40 Nm (30 lb-ft).

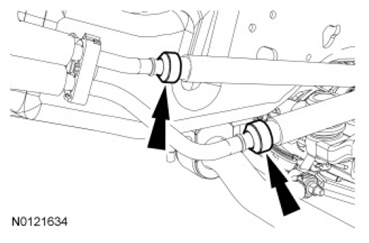

  Fig 1: Locating Rear Transmission Fluid Cooler Tubes
  Courtesy of FORD MOTOR CO.
Connect the solenoid body electrical connector.
- Tighten to 5 Nm (44 lb-in).

  Fig 2: Locating Solenoid Body Electrical Connector
  Courtesy of FORD MOTOR CO.
Position the starter motor wiring harness bracket on the stud.

Fig 3: Locating Starter Motor Wiring Harness Bracket
Courtesy of FORD MOTOR CO.
Position the cables and install the starter solenoid terminal eyelet nuts and ground cable stud bolt.
- Tighten the ground cable stud bolt to 10 Nm (89 lb-in).
- Tighten the starter battery terminal nut to 12 Nm (106 lb-in).
- Tighten the starter solenoid terminal nut to 5 Nm (44 lb-in).

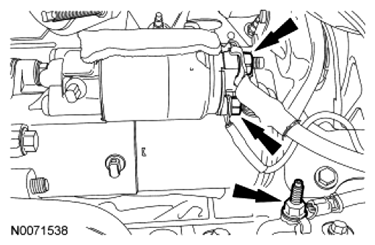

  Fig 4: Locating Starter Solenoid Cable Eyelet Nuts And Ground Cable Stud Bolt
  Courtesy of FORD MOTOR CO.

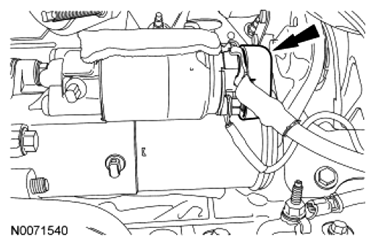

Install the starter motor terminal cover.

Fig 5: Locating Starter Motor Terminal Cover
Courtesy of FORD MOTOR CO.
Position the transmission fluid cooler tube assembly bracket on the stud and install the nut.
- Tighten to 25 Nm (18 lb-ft).

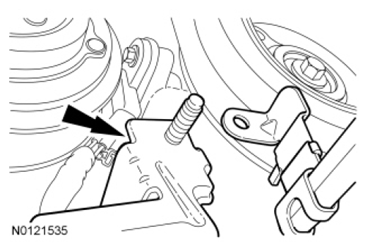

  Fig 6: Locating Transmission Fluid Cooler Tube Assembly Bracket Nut
  Courtesy of FORD MOTOR CO.
Connect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Install the front transmission fluid cooler tube assembly in the vehicle and attach the pin-type retainer to the frame rail.

Fig 7: Locating Pin-Type Retainer
Courtesy of FORD MOTOR CO.
Connect the transmission fluid cooler tube assembly.

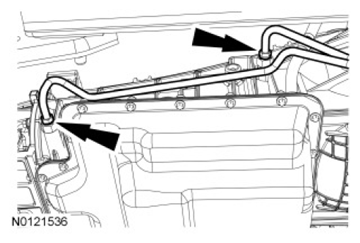

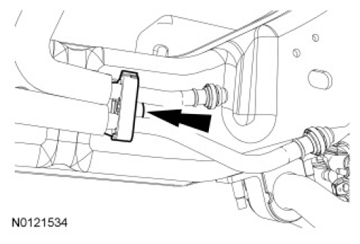

Fig 8: Locating Transmission Fluid Cooler Tube Assembly
Courtesy of FORD MOTOR CO.
Install the front transmission fluid cooler tube secondary latches.

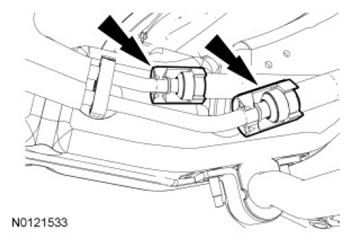

Fig 9: Locating Front Transmission Fluid Cooler Tube Secondary Latches
Courtesy of FORD MOTOR CO.
Connect the front transmission fluid cooler tube to the OTA fluid cooler.

Fig 10: Locating OTA Fluid Cooler Transmission Fluid Cooler Tube
Courtesy of FORD MOTOR CO.
Install the lower air deflector and 3 pushpins.

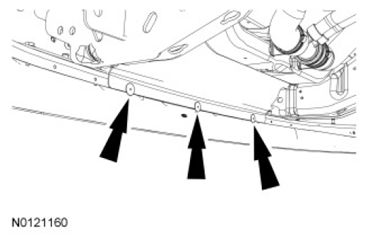

Fig 11: Locating Lower Air Deflector Pushpins
Courtesy of FORD MOTOR CO.
Install the remaining 3 pushpins in the lower air deflector.

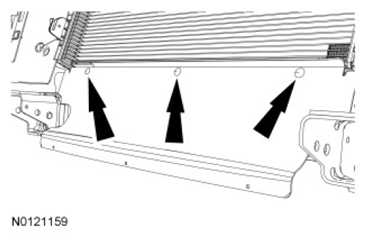

Fig 12: Locating Lower Air Deflector Pushpins
Courtesy of FORD MOTOR CO.
Connect the front transmission fluid cooler tube to the radiator in-tank cooler.

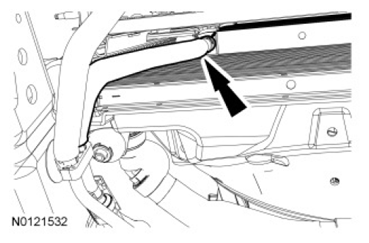

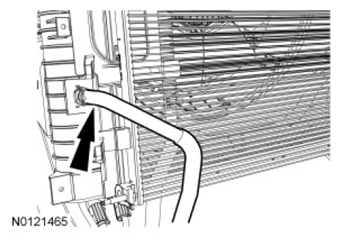

Fig 13: Locating Front Transmission Front Fluid Cooler Tube At Radiator In-Tank Cooler
Courtesy of FORD MOTOR CO.
Position back the A/C condenser and install the 2 bracket bolts.
- Tighten to 8 Nm (71 lb-in).

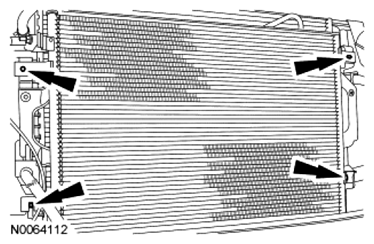

  Fig 14: Locating A/C Condenser Bracket Bolts
  Courtesy of FORD MOTOR CO.
Install the radiator grille. For additional information, refer to EXTERIOR TRIM AND ORNAMENTATION .
Fill with transmission fluid and check for leaks.
